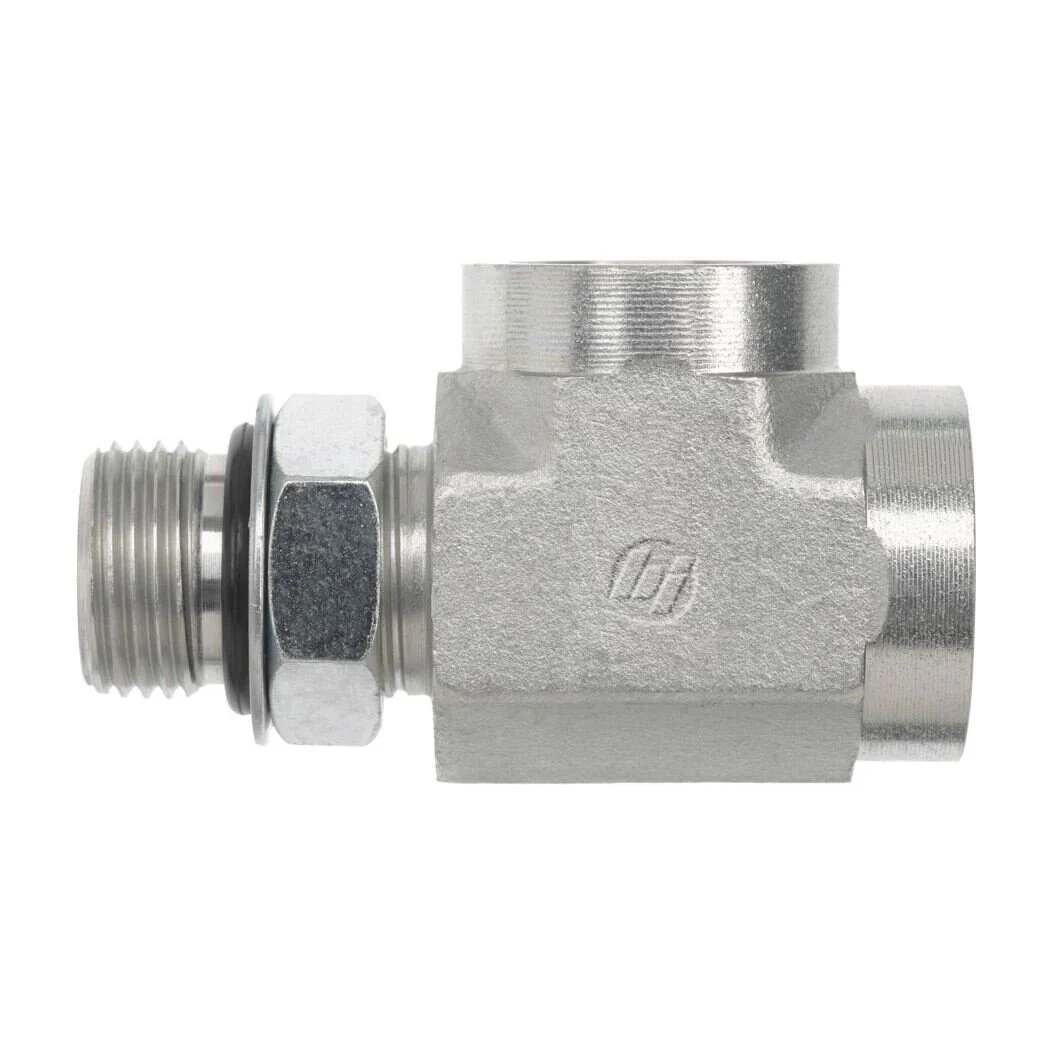

The Brennan 6835-08-08-08-NWO-FG is a 1/2" MORB POS x 1/2" FORB x 1/2" FORB TEE fitting designed for high-pressure hydraulic systems. Constructed from forged steel with Cr3 plating, it ensures durability and corrosion resistance. The tee design allows for efficient branching of hydraulic lines while maintaining leak-free performance. Features adjustable and female O-ring boss threads for secure and flexible connections. Built to SAE J514 standards, this fitting is ideal for industrial, automotive, and fluid control applications. Compact yet robust, it simplifies complex hydraulic layouts.
Fitting Chart- 1/2" MORB POS x 1/2" FORB x 1/2" FORB TEE fitting for high-pressure systems
- Forged steel body with Cr3 plating for long-lasting strength and corrosion resistance
- Adjustable and female O-ring boss threads for secure, leak-free connections
- Complies with SAE J514 standards for industrial reliability
- Tee design allows efficient branching in hydraulic lines
- Compact design supports tight and complex hydraulic configurations
| Thread B1 Type | Male SAE Adjustable Oring Boss |
| Thread B1 Size | 3/4-16 |
| Thread B1 Drill In | 0.391 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Female O-Ring Boss |
| Thread B2 Size | 3/4-16 |
| Thread B2 Drill In | 0.391 |
| Thread B2 Specification | SAE J514 |
| Thread 3 Type | Female O-Ring Boss |
| Thread 3 Size | 3/4-16 |
| Thread 3 Drill In | 0.391 |
| Thread 3 Specification | SAE J514 |
| Body Hex In | 1.062 |
| C Hex 1 In | 0.875 |
| Overall Length L In | 0.88 |
| Centerline Length M In | 1.59 |
| Centerline Length M2 In | 0.88 |
| Shape | Tee |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| O-Ring / Seal Material | Nbr |
| Weight Lbs | 0.4375 |
