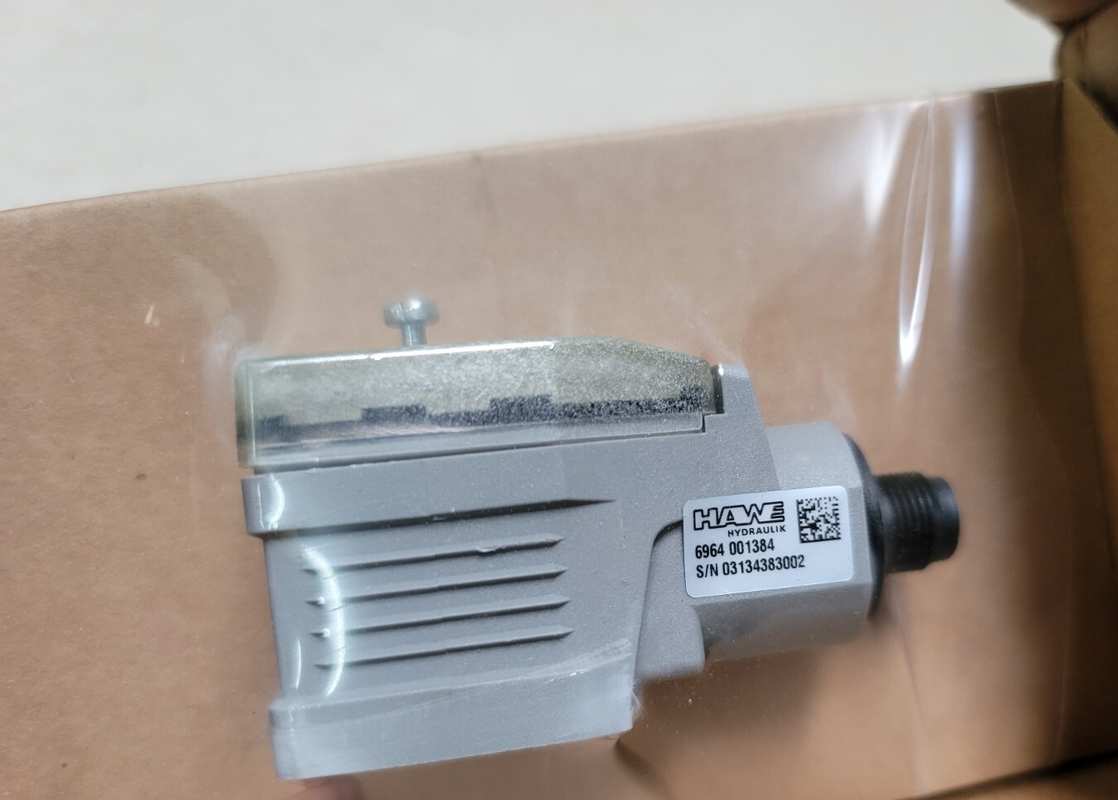

The HAWE EV2S-BT-G-M is a compact proportional amplifier that mounts directly onto a valve solenoid, enabling precise current control for single or twin solenoid valves. Powered by 24?V DC and featuring a rugged M12 connector, this amplifier supports intelligent configuration via Bluetooth using the free HAWE eControl app. It offers real-time diagnostics, parameter scaling, and firmware updates ideal for field commissioning, system tuning, and condition monitoring in hydraulic applications.
- Bluetooth interface allows configuration, monitoring, and updates via smartphone (iOS/Android)
- Direct plug-on design with M12 connector and 9-pin D-Sub CAN, eliminating cable requirements
- Controls one solenoid (single or twin coil) with stable current output (~1.6?A max)
- IP65-rated rugged housing for industrial and outdoor hydraulic applications
- Real-time diagnostics with live data, fault logs, password protection, and firmware updates
| Part Number | EV2S-BT-G-M (6964?0013-84.HW) |
| Power Supply | 10 32?V DC |
| Max Output Current | 1.6?A |
| Interfaces | Bluetooth, CAN via integrated M12, 9-pin D-Sub |
| Protection Rating | IP65 |
| Mounting | Plugs directly onto proportional valve solenoid |
| Software | HAWE eControl app + HAWE Visual Tool, eDesign |
| Features | Configurable current, live diagnostics, password lock, firmware upgrades |
