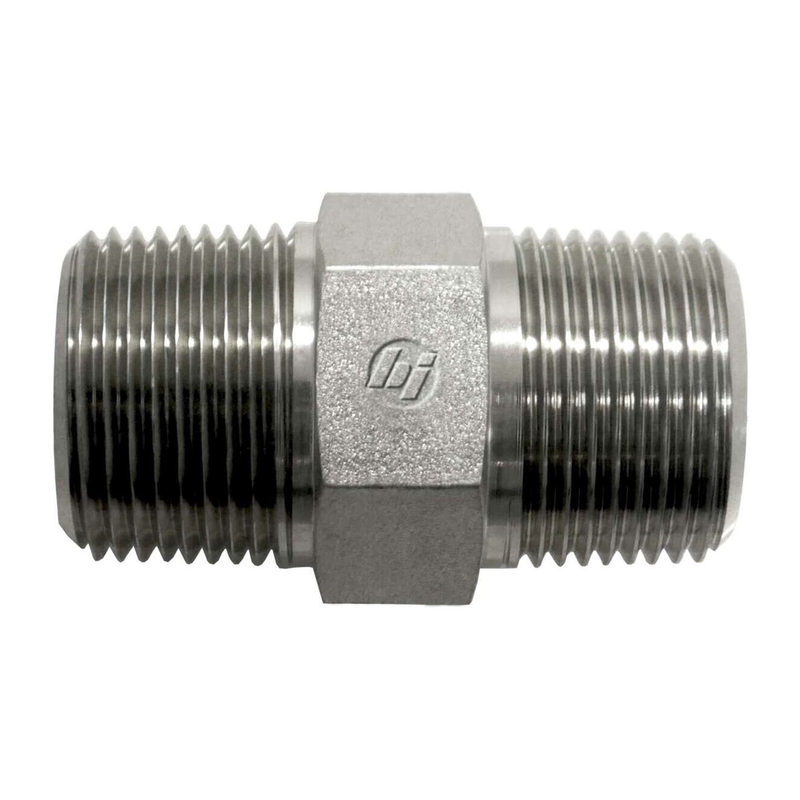

This Brennan Industries 7030-04-04 hydraulic hex nipple provides a dependable connection between 1/4" MNPT and 1/4" MBSPT threaded hydraulic lines. Built from high-strength straight steel and finished with a corrosion-resistant Cr3 plating, it ensures durability and long-lasting performance in demanding applications. The fitting is engineered to withstand up to 6000 PSI, making it ideal for high-pressure hydraulic systems. Its compact straight design and precision-machined threads ensure a secure, leak-free seal. Perfect for industrial equipment, machinery maintenance, and hydraulic repair operations.
Fitting Chart- Creates a reliable, leak-tight connection between NPT and BSPT hydraulic lines
- Strong steel construction provides excellent durability and long-term performance
- Cr3 plating enhances corrosion resistance and helps the fitting withstand harsh environments
- Straight hex design makes installation quick and easy with standard tools
- Suitable for high-pressure hydraulic systems thanks to its 6000 PSI rating
- Ideal for industrial machinery, repair shops, and hydraulic maintenance operations
| Specification | Details |
| Thread Type B1 | Male Npt |
| Thread Size B1 | 1/4-18 |
| Thread Drill B1 (Mm) | 7.1 |
| Thread Specification B1 | Ansi B1.20.1 |
| Thread Type B2 | Male Bspt (R) |
| Thread Size B2 | 1/4-19 |
| Thread Drill B2 (Mm) | 7.1 |
| Thread Specification B2 | Iso 7-1 |
| Body Hex (Mm) | 15.9 |
| Overall Length L (Mm) | 36.8 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight (Lbs) | 0.069 |
| Maximum Dynamic Pressure (Psi) | 6000 |
| California Residents | Prop-65 Warning |
| Cubic Inch Space (L X W X H) | 0.568 |
