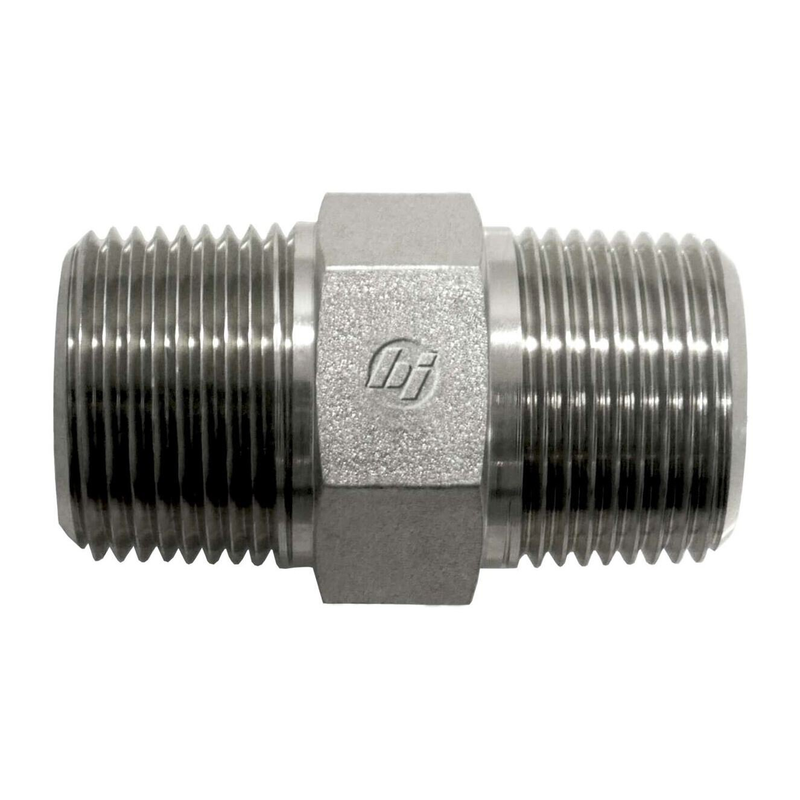

This Brennan Industries 7030-06-04 hydraulic fitting is a high-precision 3/8" MNPT x 1/4" MBSPT straight hex nipple designed for reliable performance in demanding hydraulic applications. Manufactured from durable straight steel and finished with corrosion-resistant Cr3 plating, it ensures long service life even under tough operating conditions. The fitting supports up to 6000 PSI maximum dynamic pressure, making it suitable for high-pressure hydraulic systems. With ANSI B1.20.1 and ISO 7-1 compliant threads, it provides a secure, leak-free connection. Compact in size yet strong in build, this hex nipple offers excellent versatility for machinery, industrial equipment, and hydraulic line installations.
Fitting Chart- Designed to securely connect NPT and BSPT hydraulic lines with a strong, leak-resistant seal
- Built from high-quality steel for long-lasting durability in demanding hydraulic environments
- Cr3 plated surface helps protect against rust, wear, and harsh working conditions
- Straight hex nipple shape allows quick, easy installation with standard tools
- Engineered to handle high-pressure hydraulic systems with reliable performance
- Ideal for industrial machinery, equipment maintenance, and hydraulic repair setups
| Specification | Details |
| Thread Type B1 | Male Npt |
| Thread Size B1 | 3/8-18 |
| Thread Drill B1 (Mm) | 9.5 |
| Thread Specification B1 | Ansi B1.20.1 |
| Thread Type B2 | Male Bspt (R) |
| Thread Size B2 | 1/4-19 |
| Thread Drill B2 (Mm) | 6.3 |
| Thread Specification B2 | Iso 7-1 |
| Body Hex (Mm) | 17.4 |
| Overall Length L (Mm) | 38 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight (Lbs) | 0.088 |
| Maximum Dynamic Pressure (Psi) | 6000 |
| California Residents | Prop-65 Warning |
| Cubic Inch Space (L X W X H) | 0.702 |
