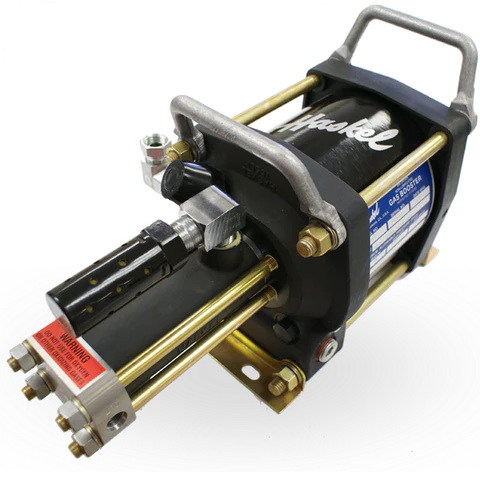

The Haskel gas booster is a durable, two-stage pneumatic pump specifically engineered for hydrogen and inert gas compression. It boosts inlet pressures as low as 15?psi up to a maximum of 9,000?psi (620?bar), utilizing air power to avoid heat and contamination. Its compact, air-actuated design delivers reliable performance for cylinder filling, gas sampling, and high-pressure lab tasks without requiring electricity. Designed for rugged use, it includes interchangeable gas ports and a convenient handle for flexible field or workshop installation.
- Air-powered, no electric motor runs cool and safe
- Two-stage design for compact size with high compression
- Supports hydrogen boosting up to 9,000 psi (620 bar)
- Stall-and-hold function locks pressure without air use
- Interchangeable gas fittings (3/8" SAE or 1/4" HP)
- Includes handle for easy portability and setup
| Model / Part No. | AGT-15/30 (H? Service) Haskel Part No. 86992 |
| Type | Two-stage, single-acting pneumatic gas booster |
| Gas Inlet Pressure | 15 2,500 psi (1 172 bar) |
| Max Outlet Pressure | Up to 9,000 psi (620 bar) for H?/inert gases |
| Vacuum Operation | Not applicable (booster only) |
| Displacement per Cycle | 6.2 in (101.6 mL) |
| Inlet/Outlet Ports | Interchangeable 3/8" SAE or 1/4" high-pressure fittings |
| Weight | 39 lb (17.7 kg) |
