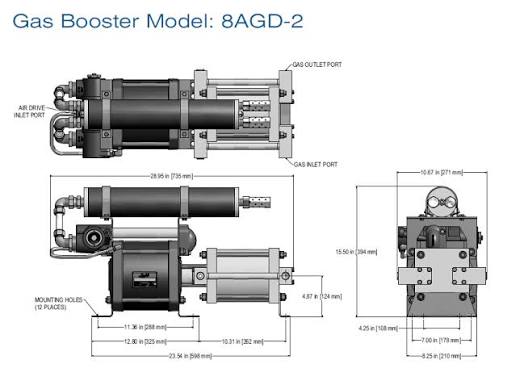

The Haskel 8AGD-2 is a rugged, pneumatic-driven gas booster designed for doubling the inlet pressure with high reliability. This double-acting, single-stage unit effortlessly increases gas pressure from around 300?psi up to the same with a nominal 2:1 ratio, making it ideal for gas supply stabilization, cylinder charging, pressure control, and lab applications. Air-powered and hydrocarbon-free, it operates cleanly without heat or lubrication, while a stall-and-hold feature maintains constant pressure safely. Built with brass/stainless internals and mounted on a durable frame, it fits effortlessly into industrial gas systems.
- Air-powered and spark-free for safe gas handling operations
- Double-acting design ensures consistent and repeatable pressure boosts
- Stall-and-hold function maintains pressure without continuous air consumption
- Hydrocarbon-free gas path protects gas purity no internal lubrication required
- Compact, easy-to-service unit enclosed in a durable, robust frame
| Model / Part No. | 8AGD-2 |
| Type | Air-driven double-acting, single-stage gas booster |
| Nominal Boost Ratio | 2:1 |
| Max Inlet/Outlet Rated | 300 psi (21 bar) for inert gases and oxygen |
| Air Drive Pressure | Recommended 20 130 psi |
| Piston Displacement | 200 in (3,277 mL) per cycle |
| Gas Connections | Two 3/4" FNPT ports (inlet & outlet) |
| Max Cycle Rate | 50 cycles/min (8" unit) |
| Weight | Approximately 121 lb (55 kg) |
