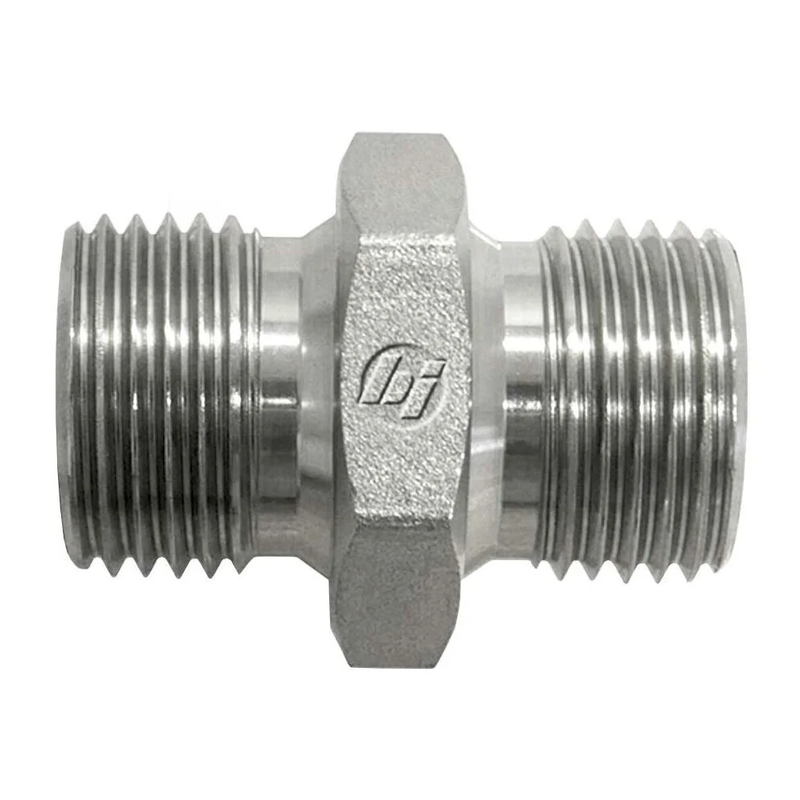

The Brennan Industries 9022-06-06 straight hex nipple provides a secure connection between two 3/8" Male BSPP (60° seat) hydraulic ports. Built from strong straight steel and finished with Cr3 plating, it delivers excellent durability and corrosion resistance in demanding hydraulic environments. Designed for systems operating up to 5100 PSI, this fitting ensures a leak-free and reliable seal through its precision-machined 60° seat swivel connections. The compact straight design allows easy installation, making it ideal for hydraulic machinery, equipment maintenance, and industrial fluid transfer systems.
Fitting Chart- Creates a dependable, leak-tight connection between two BSPP hydraulic lines
- Strong steel construction ensures long-lasting durability and stability in tough environments
- Cr3 plating provides added protection against corrosion and wear
- 60° seat swivel design promotes a secure seal and smooth hydraulic flow
- Suitable for medium to high-pressure hydraulic systems up to 5100 PSI
- Ideal for industrial equipment, machinery maintenance, and hydraulic repair applications
| Specification | Details |
| Thread Type B1 | Male BSPP With 60 Degree Seat |
| Thread Size B1 | 3/8-19 |
| Thread Drill B1 (Mm) | 9.5 |
| Thread Specification B1 | 60 Deg Seat Swivel Connection |
| Thread Type B2 | Male BSPP With 60 Degree Seat |
| Thread Size B2 | 3/8-19 |
| Thread Drill B2 (Mm) | 9.5 |
| Thread Specification B2 | 60 Deg Seat Swivel Connection |
| Body Hex (Mm) | 22 |
| Overall Length L (Mm) | 32.5 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight (Lbs) | 0.093 |
| Maximum Dynamic Pressure (Psi) | 5100 |
| California Residents | Prop-65 Warning |
| Cubic Inch Space (L X W X H) | 0.96 |
