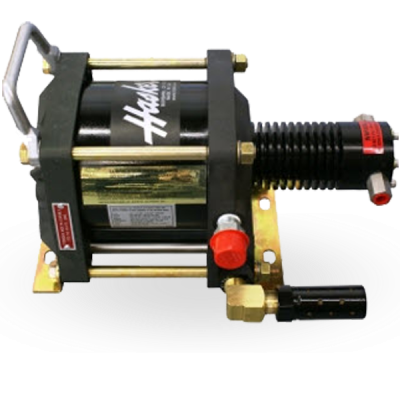

The Haskel AA-30 Air Amplifier is a compact, single-acting, single-stage pneumatic booster designed to increase air or nitrogen pressure up to 4,500?psi (310?bar) using only compressed air. It operates safely without electricity, generating minimal heat and no sparks, making it ideal for oxygen service, pneumatic tooling, or high-pressure applications. Featuring a rugged frame and directly driven piston, it offers reliable, maintenance-friendly performance thanks to long seal life and no internal lubrication.
- Boosts output pressure up to 4,500 PSI (310 bar) using air drive only
- No lubrication required oil-free outlet ensures system purity
- Compact and lightweight (~27 lb), mountable in any orientation
- Adjustable pressure and flow via air drive regulator infinitely variable
- Safe operation with no electrical components ideal for hazardous or oxygen-rich environments
| Model / Part No. | AA-30 |
| Type | Single-acting, single-stage air amplifier |
| Nominal Ratio | 30:1 |
| Max Drive Pressure | 150 psi air |
| Max Outlet Pressure | 4,500 psi (310 bar) |
| Displacement/Cycle | 3.1 in (51 mL) |
| Max Cycle Rate | 80 cycles/min |
| Gas Ports | 1/4" FNPT inlet/outlet |
| Air Drive Port | 1/2" FNPT |
| Weight | ~27 lb (12.25 kg) |
