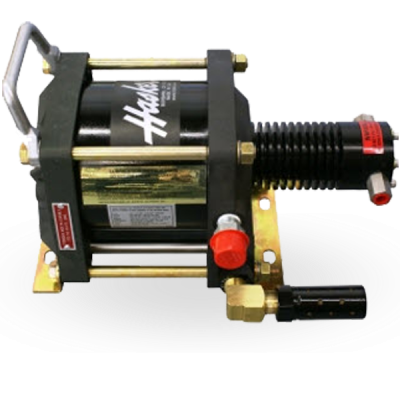

The Haskel AA-8 is a compact, air-driven amplifier that boosts pneumatic pressure up to roughly 2,500?psi (depending on input pressure), without requiring electricity. Its single-acting and single-stage, delivering amplified air or nitrogen cleanly ideal for oxygen service or explosion-sensitive environments. With no internal oil and minimal heat generation, it offers maintenance-friendly, spark-free operation. Its sturdy frame and efficient seal system ensure reliable performance in industrial, medical, and pneumatic tooling applications.
- Air-driven no electricity or lubrication required
- Boosts output pressure up to 2,500 PSI
- Compact and lightweight (~21 lb), ideal for tight spaces
- Safe for ignition-risk areas no heat or sparks
- Simple, maintenance-friendly design with long seal life
| Model / Part No. | AA-8 |
| Type | Single-acting, single-stage air amplifier |
| Nominal Ratio | 8:1 |
| Max Outlet Pressure | Up to ~2,500 psi (172 bar) |
| Drive Pressure Range | 25 150 psi air |
| Displacement/Cycle | ~13.2 in (216 mL) |
| Max Cycle Rate | 80 cycles/min |
| Gas Ports |
Inlet/Outlet: 3/8" FNPT Air Drive: 1/2" FNPT |
