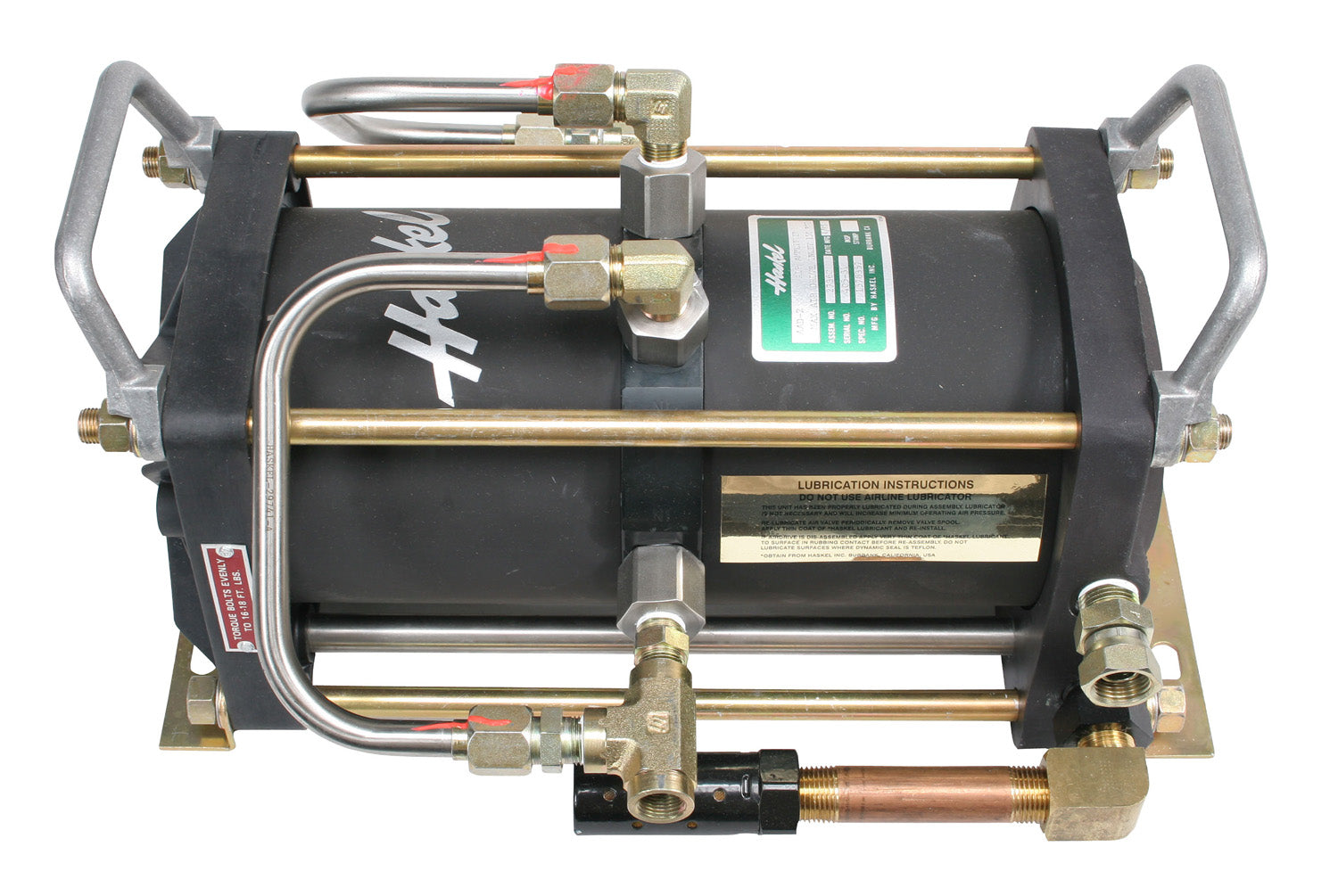

Air Amplifier, Double Acting Single Stage, -2 Ratio
- An alternative to the purchase of a dedicated high pressure compressor, Haskel air amplifiers are compact, require no electrical or mechanical drive connections, are powered by the same air that they amplify, and can be mounted in any position.
- Long seal life and easy maintainance
- No heat, flame or spark risk.
- Wide range of models, controls, and options
- No air line lubrication required eliminating oily exhaust.
- Infinitely variable outlet pressure and flow capability
- Wide range of standard and custom systems.
- Control of maximum pressure by means of inexpensive air drive pressiure regulators.
| Outlet Port: | 3/8 NPT |
| Outlet Pressure (psi): | 300 |
| Max Compression Ratio: | 2:1 |
| Stall Formula: | Pa+Ps |
| Inlet Port: | 3/8 NPT |
| Max Inlet Pressure (psi): | 300 |
| Max Air Drive | 150 |
