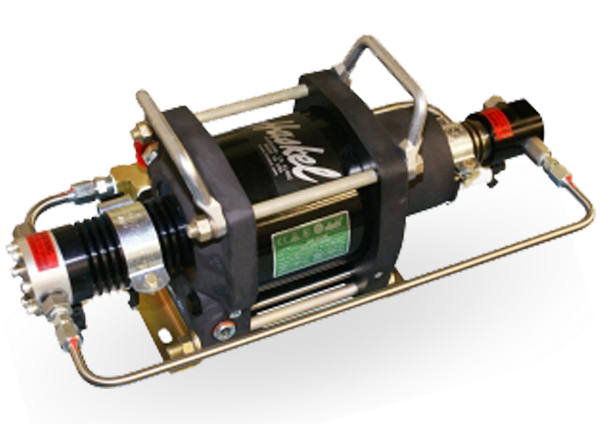

The Haskel AAT-7/30 is a two-stage pneumatic air amplifier featuring Viton seals, designed to increase inlet pressures up to 4,500?psi using only compressed air. It combines efficiency and operational safety with no electrical components, no internal lubrication, and minimal heat generation. Its compact design is easy to install and maintain, making it ideal for pressurizing pneumatic systems, gas testing, and safety applications in oxygen or hazardous environments.
- Two-stage design amplifies inlet air pressure to 4,500 PSI
- Durable Viton seals handle a variety of gases and fluids
- Oil-free operation maintains system purity
- Compact and easy to mount in any orientation
- Adjustable pressure control via air-drive regulator
| Model / Part No. | AAT-7/30 |
| Stages / Type | Two-stage, single-acting amplifier |
| Nominal Ratio | 7:1 first stage, 30:1 second stage |
| Max Drive Pressure | 150 psi (10.3 bar) |
| Max Outlet Pressure | Up to 4,500 psi (310 bar) |
| Gas Ports | 1/4" FNPT (inlet and outlet) |
| Displacement/Cycle | Approx. 13.2 in (216 mL) |
| Cycle Rate | Up to 80 cycles/min |
