This premium industrial hydraulic subplate is engineered to provide a robust, high-integrity base platform for mounting standard directional control valves within high-pressure fluid circuits. Precision-machined from solid, top-tier structural metallic materials, its heavy-duty block construction ensures absolute dimensional stability under continuous pressure loads. The internal fluid routing tracks are clean and optimized to withstand extreme mechanical shear variables safely.
Featuring highly accurate SAE straight-thread fluid ports, this subplate accommodates immediate leak-free piping installation, reducing plumbing complexity and labor. Its robust mounting interface handles severe fluid shocks and high vibrations, completely isolating attached control hardware from external physical strains. This resilient component drives excellent fluid power distribution efficiency and delivers a prolonged, maintenance-free operational lifecycle.
- Heavy-duty structural metal composition offers superior resistance to mechanical wear and guards against accidental distortion.
- Precision-machined high-flow internal channels eliminate restrictive fluid turbulence, ensuring maximum volumetric efficiency across pathways.
- High-integrity thread engagement blocks potential fluid emissions, protecting operating pressures and maintaining a clean workspace.
- Standardized AD03 subplate interface seamlessly connects diverse modular directional control valves and hydraulic manifolds.
- Side-ported thread geometry enables straightforward port access, accelerating initial plumbing and line installation setups.
- Pressure-tested block structural design handles massive dynamic shocks safely, guaranteeing superior facility asset protection.
- Continuous rigid block construction stops fatigue cracking over extended deployment timelines, providing lower capital replacement costs.

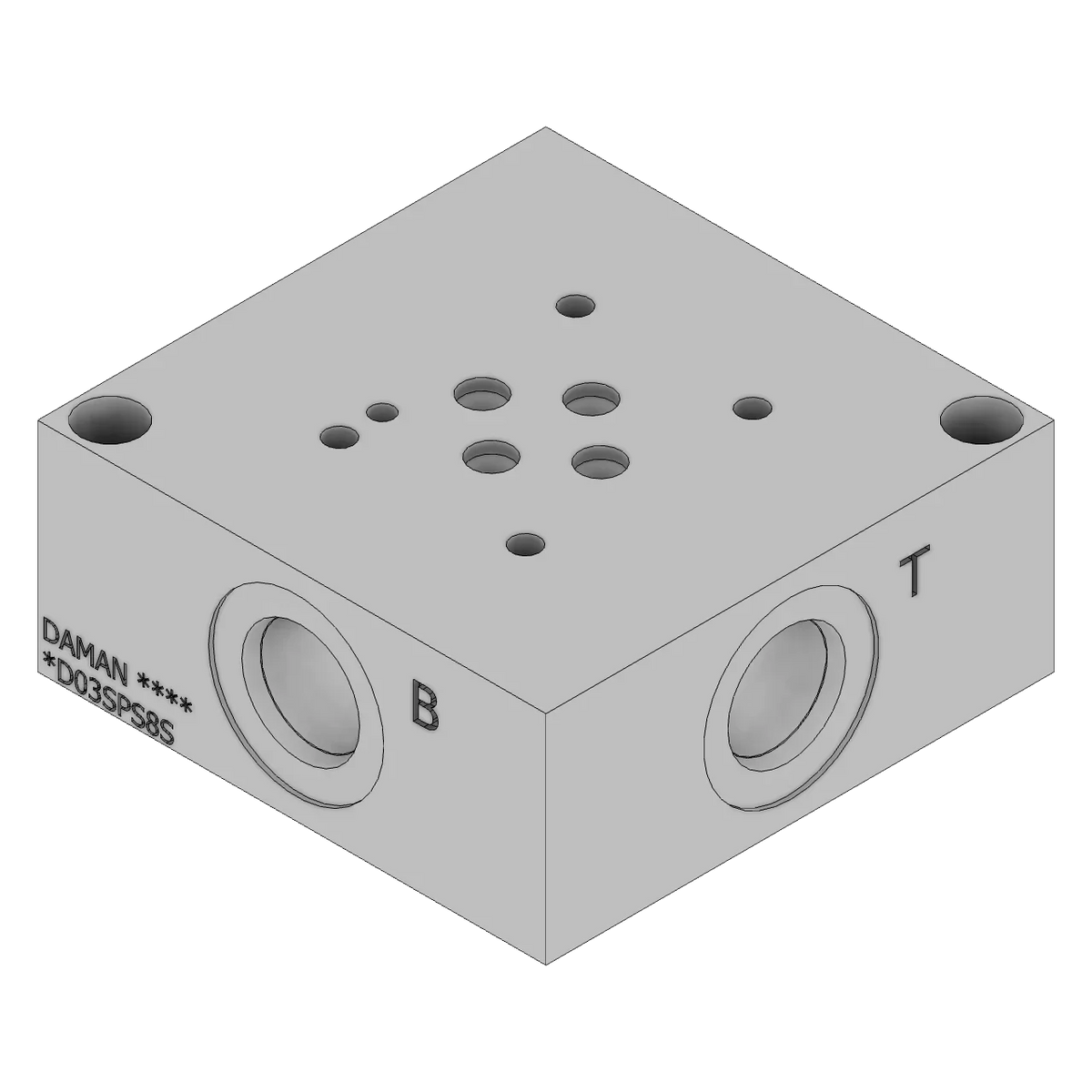

| Part No | AD03SPS8S |
| Product Type | SUBPLATE, DAMAN |
| Supplier Name | Daman Products Company, Inc. |
| Application | Base valve mounting and high-pressure fluid distribution in industrial hydraulic systems |
| Function | Rigid mounting platform and structural fluid routing pass-through for directional valves |
| Compatibility | Standard DO03 / D03 footprint directional control valves and corresponding connection modules |
| Installation Type | Fixed base or manifold block structural mounting using heavy structural fasteners |
| Compatible Media | Petroleum-based hydraulic fluids, synthetic chemical esters, and industrial mineral oils |
| Material | High-strength solid aluminum block core with corrosion-resistant protective surface treatments |
| Operating Condition | Punishing continuous-duty industrial manufacturing environments subject to severe pressure surges and cyclic vibrations |
| Performance Feature | High structural pressure containment rating balanced with optimal smooth internal fluid dynamics |
