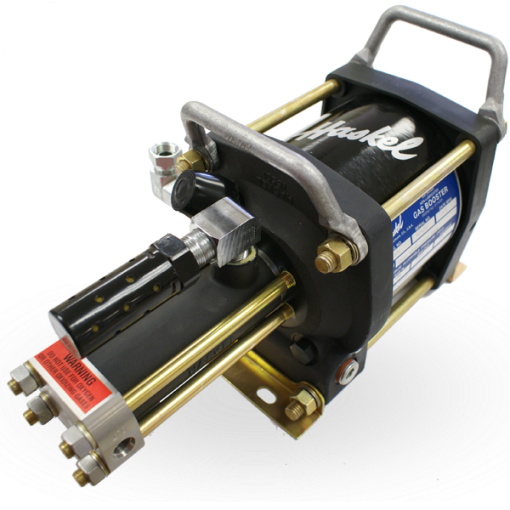

The Haskel AG-152 is a rugged, pneumatic-driven, single-stage, single-acting gas booster with a high nominal pressure ratio of 152:1. It boosts inlet gas pressures (from 250?psi) to a maximum outlet pressure of 20,000?psi for inert gases, 5,000?psi for oxygen, and 15,000?psi for hydrogen. Designed for safe, oil-free operation without electricity or heat, it features stall-and-hold capability to maintain pressure without air use. Compact and corrosion-resistant, its ideal for cylinder charging, gas sampling, and lab testing.
- Air-powered and spark-free ideal for hazardous-gas service
- High pressure boost up to 20,000 PSI on inert gases
- Stalls at set pressure to maintain output without consuming air
- Oil-free gas path preserves purity hydrocarbon-free design
- Compact and durable with interchangeable ports (3/8" SAE or 1/4" HP)
| Model / Part No. | AG-152 |
| Type | Single-stage, single-acting gas booster |
| Pressure Ratio | 152:1 |
| Gas Inlet Pressure | Min 250 psi (17 bar) |
| Max Outlet Pressure |
Inert gas: 20,000 psi (1,380 bar) O?: 5,000 psi H?: 15,000 psi |
| Displacement/Cycle | 1.2 in (?19.6 mL) per cycle |
| Connections | Interchangeable 3/8" SAE or 1/4" high-pressure fittings |
| Weight | ~27 lb (12.25 kg) |
