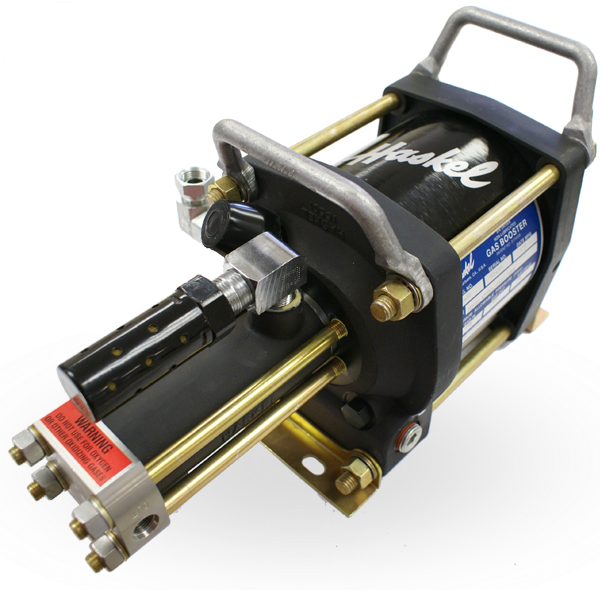

The Haskel?AG-233 is a robust, single-stage, single-acting pneumatic gas booster with a high nominal pressure ratio of 233:1, capable of boosting inlet pressures (starting at 250?psi) to a maximum of 22,500?psi (1,551?bar). Designed for clean, oil-free operation with stall-and-hold capability, it excels in cylinder charging, gas sampling, lab pressure testing, and more. Built with durable materials and sealed gas pathways, it ensures system purity and long service life.
- Air-powered, spark-free operation ideal for hazardous gases
- Achieves up to 22,500 PSI output pressure
- Stall-and-hold feature maintains set pressure without air consumption
- Hydrocarbon-free gas path ensures purity
- Compact, easy-to-maintain design with interchangeable fittings
| Model / Part No. | AG-233 |
| Type | Single-stage, single-acting gas booster |
| Pressure Ratio | 233:1 |
| Inlet Pressure | ? 250 psi (17 bar) |
| Max Outlet Pressure | 22,500 psi (1,551 bar) |
| Displacement/Cycle | 1.2 in (19.6 mL) |
| Gas Connections | Interchangeable 3/8" SAE or 1/4" HP fittings |
| Air Drive Port | 1/2" FNPT |
| Weight | ~40 lb (18 kg) |
