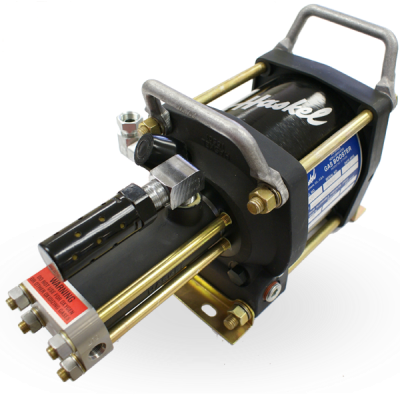

The Haskel AG-30 is a single-stage, single-acting pneumatic gas booster with an impressive 30:1 ratio, designed to increase inlet gas pressure up to 4,500?psi. Powered by compressed air, it delivers clean, oil-free boosting with stall-and-hold capability to maintain max pressure without continuous air input. Compact, reliable, and low-maintenance, its widely used for cylinder charging, pressure testing, and gas sampling in industrial, laboratory, and diving environments.
- Boosts pressure up to 4,500 PSI with a 30:1 ratio
- Air-driven no electricity, sparks, or heat
- Stall-to-hold mechanism maintains pressure without air loss
- Hydrocarbon-free gas path ensures purity
- Compact at only 27 lb, with versatile mounting options and interchangeable fittings
| Part No. | AG-30 |
| Type | Single-stage, single-acting gas booster |
| Nominal Ratio | 30:1 |
| Max Outlet Pressure | 4,500 psi (310 bar) |
| Min Gas Supply Pressure | 100 psi (7 bar) |
| Piston Displacement | 3.1 in (50.8 mL) per cycle |
| Gas/Hose Connections | Interchangeable 3/8" SAE or 1/4" HP |
| Drive Air Port | 1/2" FNPT |
| Weight | ? 27 lb (12 kg) |
