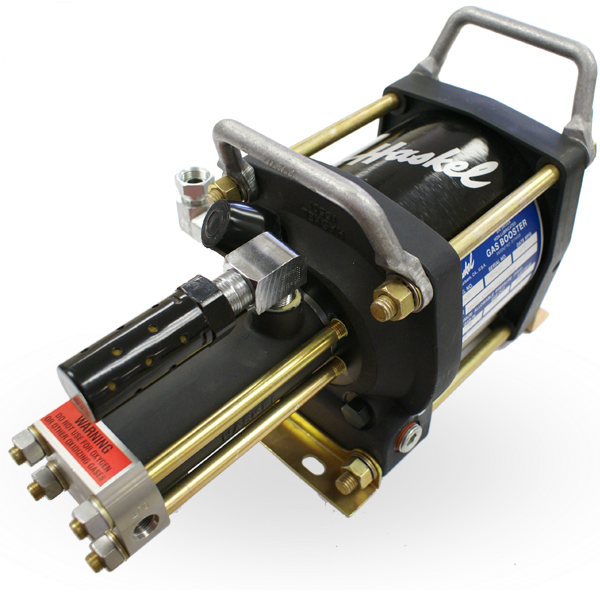

The Haskel AG-50 is a rugged, single-stage, single-acting pneumatic gas booster with a 50:1 pressure ratio, designed to elevate inlet gas pressures up to 7,500?psi. Powered entirely by compressed air, it delivers clean, oil-free operation with no sparks or heat, and includes a stall-to-hold feature to maintain pressure without air consumption. Its compact stainless-steel and brass construction ensures durability and portability, making it ideal for cylinder charging, gas sampling, and system purging in industrial and laboratory environments.
- Air-driven and inherently spark-free
- Boosts up to 7,500 PSI for most inert gases
- Stall-and-hold locks pressure without consuming drive air
- Hydrocarbon-free gas pathway preserves purity
- Durable, portable frame with interchangeable fittings
| Model / Part No. | AG-50 |
| Type | Single-stage, single-acting gas booster |
| Pressure Ratio | 50:1 |
| Gas Outlet Pressure | Up to 7,500 psi (517 bar) for inert gases; 5,000 psi for oxygen |
| Minimum Inlet Pressure | 100 psi (7 bar) |
| Displacement/Cycle | ~1.96 in (32.1 mL) per stroke |
| Gas Connections | Interchangeable 3/8" SAE or 1/4" HP fittings |
| Air Drive Connection | 1/2" FNPT |
| Wetted Materials | Stainless steel and brass body |
| Weight | ~27 lb (12 kg) |
