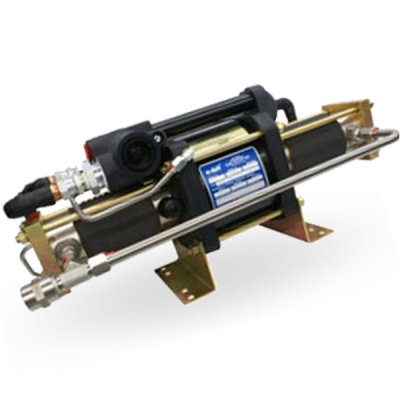

The Haskel AGD-1.5 is a heavy-duty, double-acting, single-stage pneumatic gas booster with a 1.5:1 ratio, designed for reliable mid-pressure boosting applications. It can amplify gas pressures from atmospheric up to 300?psi, using only compressed air, with minimal heat generation. A rugged, oil-free design ensures system purity and safety in sensitive environments. Built to be compact and maintenance-friendly, its ideal for gas transfer, cylinder filling, and laboratory testing where clean, efficient boosting is required.
- Double-acting design doubles output per cycle compared to single-acting units
- Safe, spark-free air-driven operation no electricity or heat risk
- Oil-free gas pathway protects gas purity
- Infinitely variable cycle speed for precise control
- Compact, robust frame with cooling jacket built for longevity
| Model / Part No. | AGD-1.5 |
| Type | Double-acting, single-stage gas booster |
| Pressure Ratio | 1.5 : 1 |
| Max Gas Outlet Pressure | 300 psi / 21 bar (inert gases, oxygen) |
| Gas Inlet Pressure | Atmospheric up to 300 psi |
| Air Drive Pressure | 20 130 psi |
| Piston Displacement | 60 in / 983 mL per cycle |
| Connections |
Gas Inlet: 3/4" FNPT Gas Outlet: 1/2" FNPT |
| Weight | ~57 lb (26 kg) |
