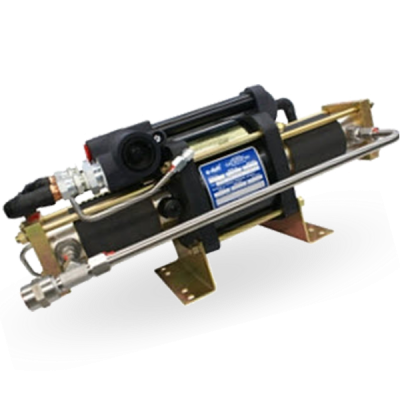

The Haskel AGD-30 is a double-acting, single-stage pneumatic gas booster with a powerful 30:1 pressure ratio, capable of boosting gas pressures up to 9,000?psi (620?bar) on inert gases. It operates on compressed air, offering clean, oil-free boosting with built-in stall-and-hold capability to maintain pressure without using additional air. Its rugged design features a cooling jacket and hydrocarbon-free pathways, ensuring purity and longevity ideal for cylinder charging, gas testing, or pressurization in industrial, diving, and laboratory settings.
- Double-acting action delivers twice the volume per cycle
- Air-driven, spark-free, and oil-free safe for hazardous or oxygen-rich environments
- Stall-and-hold maintains set pressure without consuming more air
- Hydrocarbon-free gas path protects gas purity and system safety
- Compact yet durable with cooling jacket and interchangeable fittings
| Model / Part No. | AGD-30 |
| Type | Double-acting, single-stage gas booster |
| Pressure Ratio | 30:1 |
| Max Outlet Pressure |
9,000 psi (620 bar) for inert gases 5,000 psi (345 bar) for oxygen |
| Minimum Inlet Pressure | ~100 psi (7 bar) |
| Piston Displacement / Cycle | 6.2 in (~102 mL) |
| Gas Connections | Dual inlet/outlet 3/8" SAE or 1/4" high-pressure fittings |
| Air Drive Port | 1/2" FNPT |
| Weight | ~38 lb (17 kg) |
