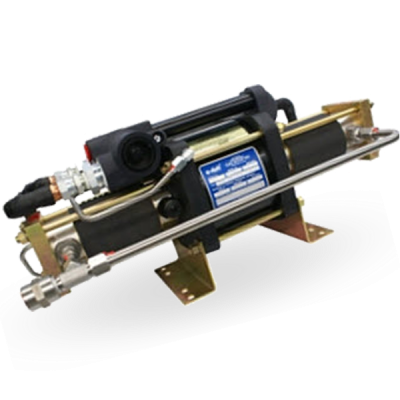

The Haskel AGD-32 is a double-acting, single-stage pneumatic gas booster with an effective 32:1 pressure ratio, boosting inlet gas pressures up to 5,000?psi (345?bar) using just compressed air. Designed for reliable, oil-free operation, it offers stall-and-hold functionality to maintain peak pressure without consuming additional drive air. Built with a rugged, compact design and cooling jacket, it ensures purity and performance in cylinder charging, leak testing, and industrial applications. Its hydrocarbon-free gas pathways and easy maintenance make it ideal for lab, diving, and gas transfer environments.
- Double-acting piston delivers twice the volume per cycle
- Air-driven, spark-free operation no electricity required
- Stall-to-hold maintains pressure without continuous air usage
- Hydrocarbon-free gas pathway preserves system purity
- Compact, cooling-jacketed design with interchangeable fittings
| Model / Part No. | AGD-32 |
| Type | Double-acting, single-stage gas booster |
| Pressure Ratio | 32:1 |
| Maximum Outlet Pressure |
5,000 psi / 345 bar (inert gas) 5,000 psi (oxygen) 4,000 psi (hydrogen) |
| Minimum Gas Supply Pressure | 50 psi (3.5 bar) |
| Air Drive Pressure Range | 20 150 psi |
| Displacement per Cycle | 12.4 in (?203 mL) |
| Gas Inlet/Outlet Ports | Dual 3/8" SAE or 1/4" HP |
| Air Drive Port | 1/2" FNPT |
| Maximum Cycle Rate | 60 cycles/min |
