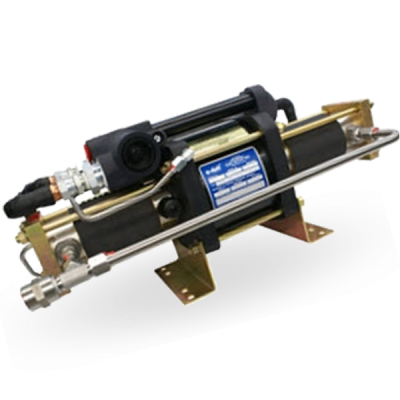

The Haskel AGD-7 is a rugged, double-acting, single-stage pneumatic gas booster with a 7:1 pressure ratio, designed to boost inlet gas pressures up to 2,500?psi (172?bar) using only compressed air. Its double-acting design doubles the gas output per cycle and features a stall-to-hold function that maintains pressure without continuous air consumption. With a hydrocarbon-free, oil-less gas pathway and compact, corrosion-resistant frame, its ideal for cylinder filling, leak testing, and industrial gas systems.
- Double-acting design delivers twice the gas output per cycle
- Air-driven and spark-free no electrical components or heat
- Stall-and-hold capability locks pressure without using drive air
- Hydrocarbon-free gas path ensures system purity
- Lightweight and portable with cooling jacket for continuous operation
| Model / Part No. | AGD-7 |
| Type | Double-acting, single-stage gas booster |
| Pressure Ratio | 7:1 |
| Maximum Outlet Pressure | 2,500 psi (172 bar) |
| Minimum Gas Inlet Pressure | 25 psi (1.7 bar) |
| Piston Displacement per Cycle | 26.4 in (432.6 mL) |
| Gas Inlet/Outlet Ports | Dual 3/8" NPT |
| Air Drive Port | 1/2" FNPT |
| Weight | ? 35 lb (16 kg) |
