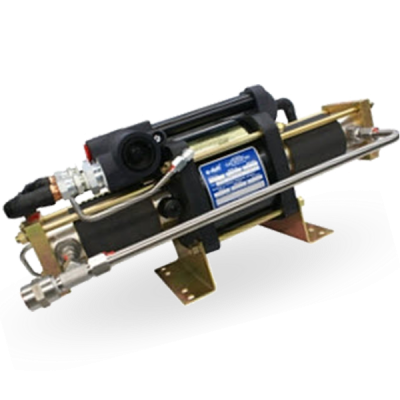

The Haskel?AGD-75 is a high-performance, double-acting, single-stage pneumatic gas booster with a 75:1 pressure ratio, capable of boosting gas pressures up to 12,000?psi (827?bar) using only compressed air. Its double-acting design delivers twice the displacement per cycle while conserving drive air. The unit includes a stall-and-hold mechanism, maintaining maximum pressure without continuous air use. Constructed with hydrocarbon-free gas pathways and a cooling jacket, it ensures purity and durability, making it ideal for demanding applications like cylinder charging, gas transfer, pressure testing, and industrial use.
- Double-acting design delivers double volume per cycle with less drive air
- Air-powered, spark-free, and oil-free safe for hazardous or oxygen environments
- Stall-and-hold feature maintains pressure without additional air
- Hydrocarbon-free gas pathway ensures high system purity
- Compact cooling jacket design supports continuous operation even at high output
| Model / Part No. | AGD-75 |
| Type | Double-acting, single-stage pneumatic gas booster |
| Pressure Ratio | 75:1 |
| Max Gas Outlet Pressure |
Inert Gas: 12,000 psi (827 bar) Oxygen: 5,000 psi (345 bar) Hydrogen: 15,000 psi (1,034 bar) |
| Minimum Gas Supply Pressure | 250 psi (17 bar) |
| Piston Displacement per Cycle | 2.4 in (?39 mL) |
| Gas Connections | Two 3/8" SAE or 1/4" HP fittings |
| Air Drive Port | 1/2" FNPT |
| Max Cycle Rate | Up to 60 cycles/min |
| Weight | ~39 lb (18 kg) |
