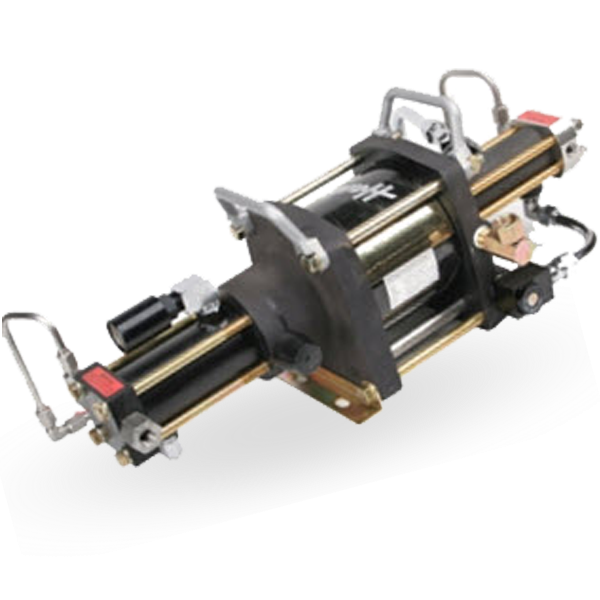

The Haskel AGT-15/30 is a rugged, two-stage, double-acting pneumatic gas booster offering a compact solution to pressurize gas up to 9,000?psi (620?bar). Powered by compressed air, it maintains a clean, oil-free system with no sparks or heat generation ideal for oxygen-ready and hazardous environments. Its stall-and-hold mechanism sustains maximum pressure without continuous air consumption. Built with corrosion-resistant components and interchangeable high-pressure fittings, it's perfect for cylinder charging, gas sampling, and industrial pressure applications.
- Two-stage, double-acting design maximizes efficiency per cycle
- Air-driven and electrically safe no sparks, no heat
- Stall-to-hold locks in pressure without using drive air
- Hydrocarbon-free gas path ensures purity for sensitive gas handling
- Compact, robust frame with cooler jacket ideal for continuous use
| Model / Part No. | AGT-15/30 |
| Type | Two-stage, double-acting gas booster |
| Pressure Ratio | 15:1 (1st stage), 30:1 (2nd stage) |
| Max Outlet Pressure |
Inert Gas: 9,000 psi (620 bar) Oxygen: 5,000 psi (345 bar) Hydrogen: 9,000 psi (620 bar) |
| Minimum Gas Supply Pressure | 50 psi (3.5 bar) |
| Air Drive Pressure | Up to 150 psi (10 bar); Stall Pressure Equation: 30 Pa + 2 Ps |
| Piston Displacement / Cycle | 6.2 in (?101.6 mL) |
| Gas Ports | Interchangeable 3/8" SAE or 1/4" high-pressure (BuTech compatible) |
| Weight | 39 lb (18 kg) |
