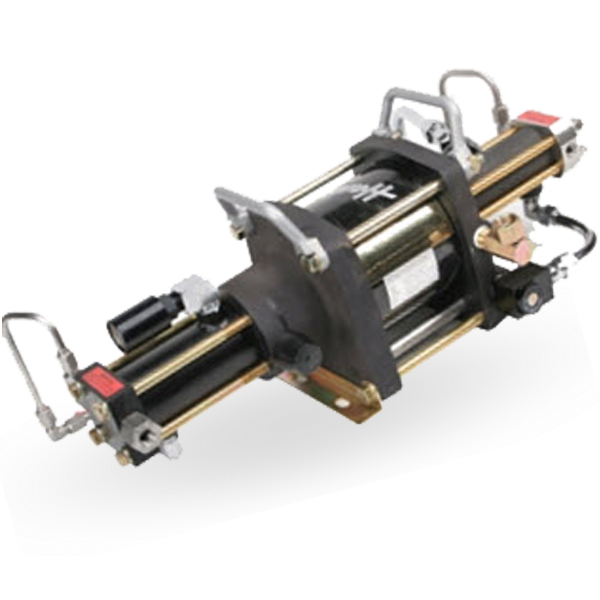

The Haskel AGT-15/75 is a two-stage, double-acting pneumatic gas booster engineered for high-compression gas systems. It uses compressed air to boost gas up to 15,000?psi (1,034?bar) with a 15:1 first-stage and 75:1 second-stage ratio and includes a stall-and-hold feature to lock pressure without using air. Featuring a hydrocarbon-free gas pathway and cooling jacket, this compact unit is ideal for cylinder charging, gas transfer, and critical industrial applications. Its robust, electrically safe design makes it suitable for oxygen, hazardous, and laboratory environments.
- Two-stage, double-acting design maximizes flow efficiency per cycle
- Air-powered and spark-free ideal for flammable or oxygen-sensitive settings
- Stall-and-hold maintains pressure without air consumption
- Hydrocarbon-free gas path ensures system cleanliness
- Compact cooling jacket frame designed for continuous heavy-duty use
| Model / Part No. | AGT-15/75 |
| Type | Two-stage, double-acting pneumatic gas booster |
| Pressure Ratio |
Stage 1: 15:1 Stage 2: 75:1 |
| Maximum Outlet Pressure |
Inert Gas: 15,000 psi (1,034 bar) Hydrogen: 15,000 psi Oxygen: 5,000 psi (345 bar) |
| Minimum Gas Supply Pressure | 100 psi (7 bar) |
| Maximum Gas Supply Pressure | 5,000 psi |
| Piston Displacement per Cycle | 6.2 in (?101.6 mL) |
| Gas Connections | Interchangeable 3/8" SAE or 1/4" HP (high-pressure) fittings |
| Air Drive Port | 1/2" FNPT |
| Weight | ~39 lb (18 kg) |
