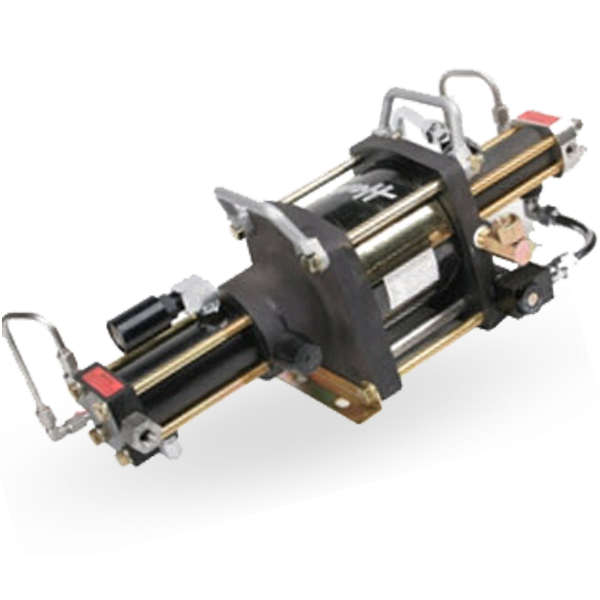

The Haskel AGT-32/152 is a two-stage, double-acting pneumatic gas booster designed for high-pressure applications. Powered solely by compressed air, it boosts gas up to 15,000?psi (1,034?bar) without electricity, making it safe in hazardous environments. Its double-acting design maximizes output per stroke, while the stall-and-hold feature locks in pressure without air consumption. Featuring a hydrocarbon-free gas pathway and rugged cooling-jacket frame, it delivers reliable performance for cylinder filling, leak testing, and sampling in industrial, laboratory, and oxygen service settings.
- Two-stage, double-acting action for efficient high-pressure boosting
- Spark-free, air-powered operation ideal for flammable or oxygen-rich environments
- Stall-and-hold maintains maximum pressure without continuous air use
- Hydrocarbon-free gas path preserves system purity
- Compact, durable cooling jacket design supports continuous operation
| Model / Part No. | AGT-32/152 |
| Type | Two-stage, double-acting pneumatic gas booster |
| Pressure Ratio |
First Stage: 32:1 Second Stage: 152:1 |
| Maximum Outlet Pressure |
Inert Gases & Hydrogen: 15,000 psi (1,034 bar) Oxygen: 5,000 psi (345 bar) |
| Minimum Gas Supply Pressure | 100 psi (7 bar) |
| Piston Displacement per Cycle | 6.2 in (?101.6 mL) |
| Gas Inlet/Outlet Connections | Interchangeable 3/8" SAE or 1/4" HP (high-pressure) fittings |
| Air Drive Port | 1/2" FNPT |
| Weight | 39 lb (18 kg) |
