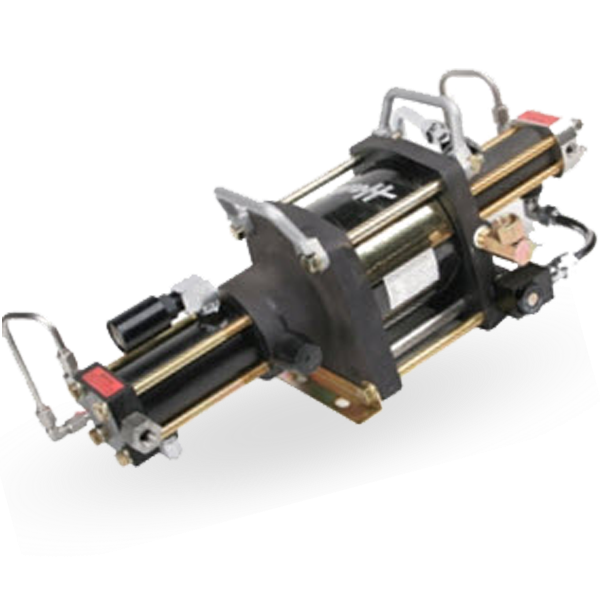

The Haskel AGT-32/62 is a rugged, two-stage, double-acting pneumatic gas booster engineered to safely pressurize inert or specialty gases up to 9,000?psi (620?bar) using only compressed air. It features a hydrocarbon-free gas path and built-in stall-and-hold design, allowing for high-pressure output without ongoing air consumption. Compact and maintenance-friendly, its cooling-jacketed frame is ideal for critical applications like cylinder charging, leak testing, gas sampling, and high-pressure industrial systems.
- Two-stage, double-acting piston doubles output per stroke
- Air-driven and spark-free safe in flammable and oxygen-rich environments
- Stall-and-hold capability maintains set pressure without consuming air
- Hydrocarbon-free gas pathway preserves purity
- Compact, rugged, cooling-jacket frame optimized for continuous operation
| Model / Part No. | AGT-32/62 |
| Type | Two-stage, double-acting booster |
| Pressure Ratio |
First Stage: 32:1 Second Stage: 62:1 |
| Maximum Outlet Pressure |
Inert Gases & Hydrogen: 9,000 psi (620 bar) Oxygen: 5,000 psi (345 bar) |
| Minimum Gas Supply Pressure | 100 psi (7 bar) |
| Piston Displacement per Cycle | 6.2 in (?101.6 mL) |
| Connections | Interchangeable 3/8" SAE or 1/4" high-pressure inlet/outlet fittings |
| Air Drive Port | 1/2" FNPT |
| Weight |
Booster Unit: Approx. 49 lb (22 kg) Shipping Weight: 61 lb (?28 kg) |
