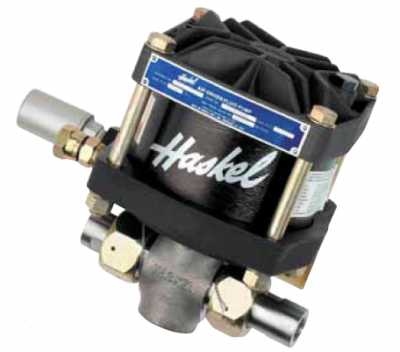

1.5 HP Air Driven Liquid Pump, Stainless Steel Hydraulic Piston and Body, 2″ Stroke, Uhmwpe, 35:1, 5700 Psi Maximum Working Pressure.
- Drive pressure 3 to 150 psi (.2 to 10 bar)
- Single air head
- Choice of wetted materials
- Flows to 22 gpm (83.0 l/min)
- Output pressures to 50000 psi (3448 bar)
- Choice of 11 models, 14 ratios, 50 possible combinations
-
Outlet Port: 1/2" NPT Inlet Port: 1/2" NPT Nominal Ratio 35 Max Air Drive 150 Horsepower 1.5 Actual Ratio 40 Max Continuous Pressure (PSI) 5700 Max Intermittent Pressure (PSI) 5700 Max CPM 80 Displacement (cu-in) 1.16 - Troubleshooting Liquid Pumps, Gas Boosters & Air Amplifiers: Leakage of the Air Drive SystemTroubleshooting Liquid Pumps, Gas Boosters & Air Amplifiers: Air Drive Leakage Through the MufflerMaintaining the Air Drive Cycling Valve 5.75” Liquid Pumps, Gas Boosters & Air AmplifiersServicing External Pilot Stems 5.75” Liquid Pumps, Gas Boosters & Air AmplifiersAir Drive Disassembly and Repair 5.75” Liquid Pumps, Gas Boosters & Air AmplifiersTroubleshooting Liquid Pumps, Gas Boosters & Air Amplifiers: Checking the Air Cycling Valve Spool & SleeveHydraulic Check Valve & Liquid Seal Repair 5.75” Liquid PumpsPump Section DrawingAir Drive DrawingOperation ManualCheck Valve DrawingLiquid Pumps Catalogue
×
