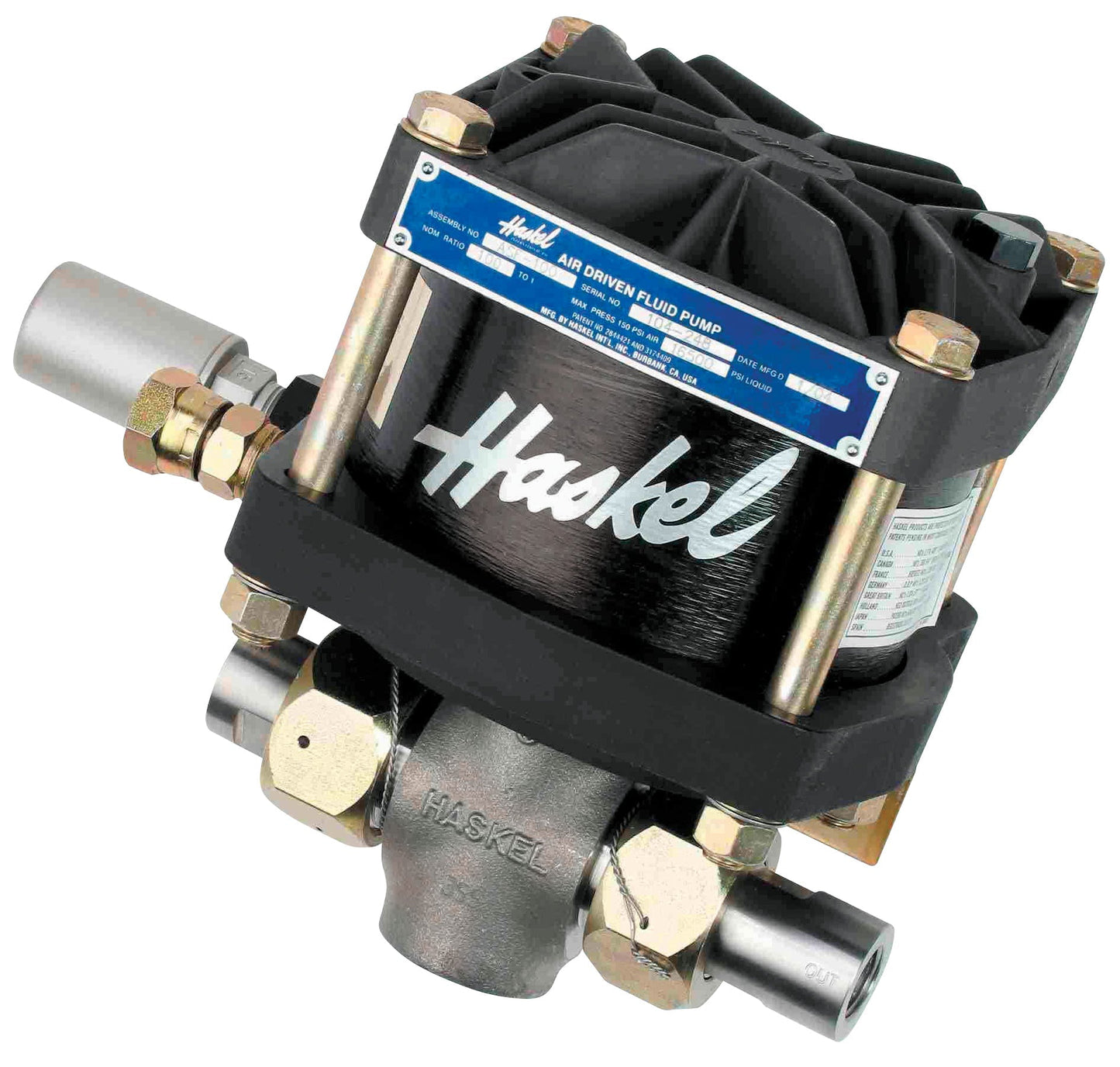

1.5 HP AIR DRIVEN LIQUID PUMP, 2" STROKE & POLYURETHANE U-CUP DYNAMIC SEAL, 60:1, 9800 PSI MAXIMUM WORKING PRESSURE
- Choice of 11 models, 14 ratios, 50 possible combinations
- Output pressures to 50000 psi (3448 bar)
- Flows to 22 gpm (83.0 l/min)
- Choice of wetted materials
- Single air head
- Drive pressure 3 to 150 psi (.2 to 10 bar)
-
Outlet Port: 1/2" NPT Inlet Port: 1/2" NPT Nominal Ratio 60 Max Air Drive 150 Horsepower 1.5 Actual Ratio 69 Max Continuous Pressure (PSI) 9800 Max Intermittent Pressure (PSI) 9800 Max CPM 80 Displacement (cu-in) 0.67 - Troubleshooting Liquid Pumps, Gas Boosters & Air Amplifiers: Leakage of the Air Drive System Servicing External Pilot Stems 5.75” Liquid Pumps, Gas Boosters & Air Amplifiers Maintaining the Air Drive Cycling Valve 5.75” Liquid Pumps, Gas Boosters & Air Amplifiers Air Drive Disassembly and Repair 5.75” Liquid Pumps, Gas Boosters & Air Amplifiers Troubleshooting Liquid Pumps, Gas Boosters & Air Amplifiers: Checking the Air Cycling Valve Spool & Sleeve Hydraulic Check Valve & Liquid Seal Repair 5.75” Liquid Pumps Troubleshooting Liquid Pumps, Gas Boosters & Air Amplifiers: Air Drive Leakage Through the Muffler Air Drive Drawing Pump Section Drawing Operation Manual Check Valve Drawing Liquid Pumps Catalogue
×
