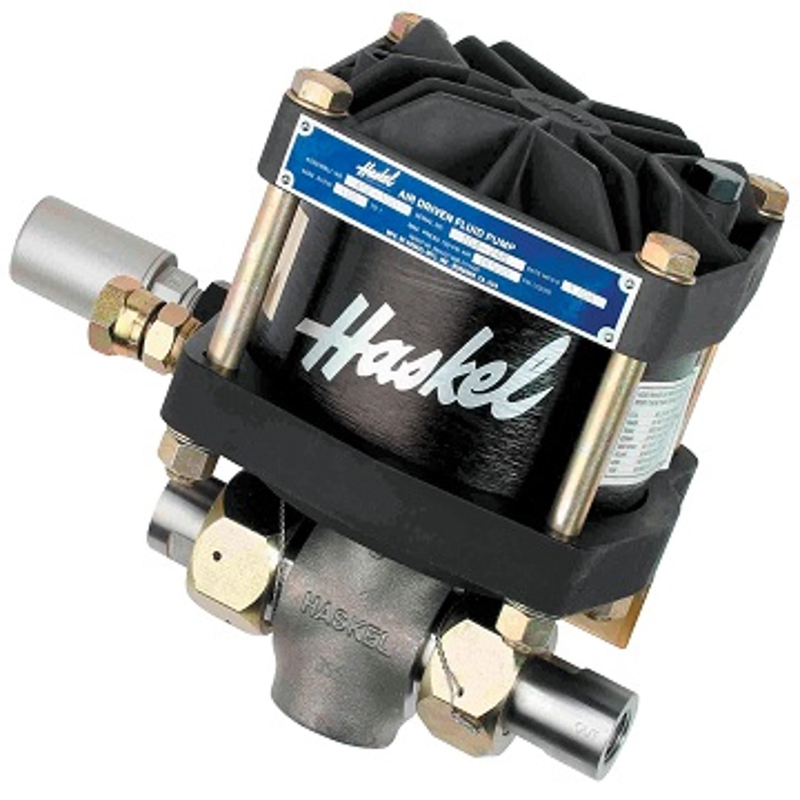

The Haskel AW-B15 is a powerful 1.5?HP pneumatic-driven liquid pump with a 15:1 nominal (17:1 actual) ratio, capable of delivering hydraulic pressures up to 2,400?psi (165?bar) using only compressed air. Featuring a 2" stroke and polyurethane U-cup dynamic seals, it reliably handles fluids with bottom-inlet functionality. Its stall-and-hold design maintains pressure indefinitely without consuming air, ensuring efficient operation. With a robust stainless-steel construction and pre-lubricated air drive section, it's ideal for hydrostatic testing, fluid transfer, clamping, and calibration particularly in environments where heat, sparks, or electricity pose safety concerns.
- Operates on compressed air no electricity, heat, or spark risk
- Produces up to 2,400 psi hydraulic pressure with high consistency
- Stall-and-hold feature maintains set pressure without further air usage
- Polyurethane U-cup seals and stainless steel build ensure durability and corrosion resistance
- Bottom-inlet design supports efficient fluid intake from reservoirs
| Model / Part No. | AW-B15 |
| Power Rating | 1.5 HP pneumatic drive |
| Nominal / Actual Ratio | 15:1 / 17:1 |
| Max Continuous Pressure | 2,400 psi (165 bar) |
| Stroke Length | 2" (50 mm) |
| Displacement per Stroke | ~2.7 in (44 mL) |
| Inlet Type | Bottom inlet |
| Seal Material | Polyurethane U-cup |
| Air Drive Seal | Pre-lubricated |
| Weight | ~10 lb (4.5 kg) |
| Mounting | Rack-mount chassis with feet |
