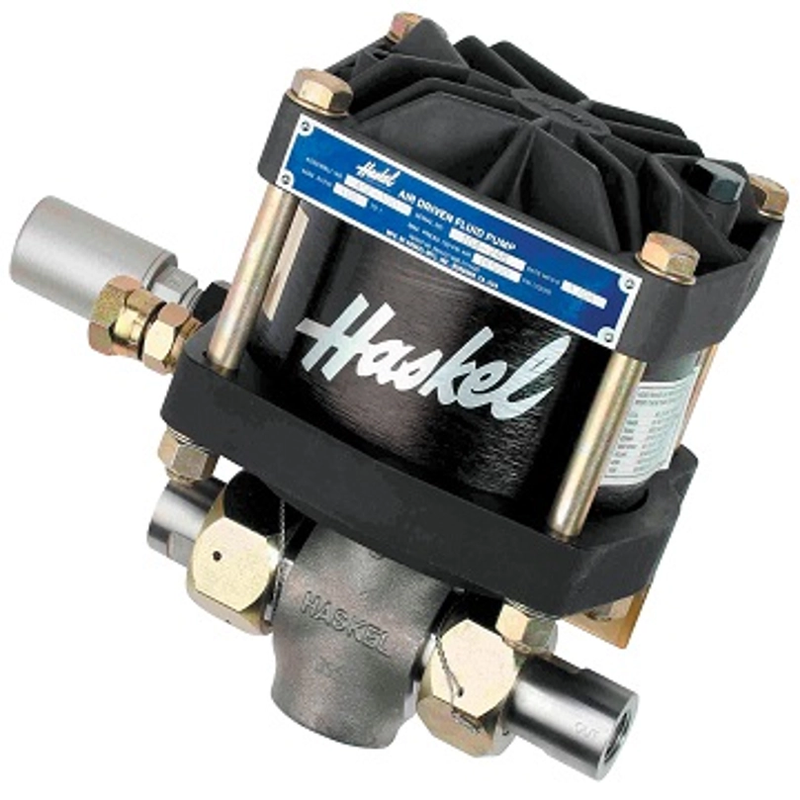

The Haskel AW-B52 is a 2?HP pneumatic-driven liquid pump with a nominal 52:1 ratio and actual area ratio of approximately 57:1. It delivers hydraulic pressure up to 8,000?psi (552?bar) using only compressed air eliminating sparks, heat, and flame risk. Featuring a stall-and-hold functionality, it maintains target pressure without consuming drive air, making it ideal for hydrostatic testing, fluid transfer, calibration, bolting, and clamping in industrial or hazardous environments. Built with a stainless-steel body, UHMWPE seals, and ATEX-compatible construction, it ensures durability and safety for demanding applications.
- Air-driven operation with no spark or heat risk
- Generates up to 8,000 psi hydraulic pressure
- Stall-and-hold function maintains pressure without air consumption
- Durable stainless-steel body and UHMWPE seals for corrosion resistance
- ATEX-certified and infinitely variable cycle speed for flexible operation
| Model / Part No. | AW-B52 |
| Power Rating | 2 HP pneumatic |
| Nominal / Actual Ratio | 52 : 1 nominal; 57 : 1 actual |
| Max Hydraulic Pressure | 8,000 psi (552 bar) |
| Displacement per Cycle | ~1.62 in (26.6 mL) |
| Air Head | Double-acting, 2 HP (max 150 psi inlet) |
| Max Cycle Rate | Up to 80 cycles/min |
| Weight | ~30 lb (13.6 kg) |
