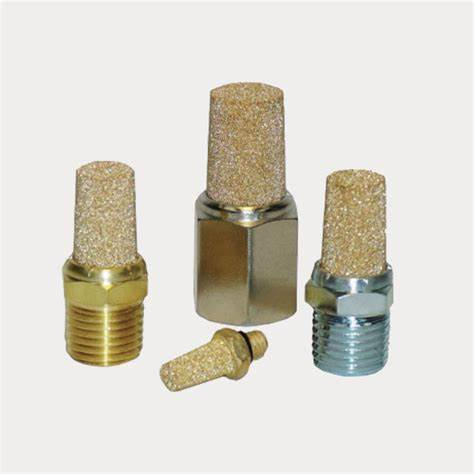

The Adsens 1/8 Sintered Bronze Muffler has been designed to accomplish two specific goals; reduce exhaust noise from pneumatic equipment while still properly maintaining airflow. The Adsens 1/8 Sintered Bronze Muffler has a solid brass body and a sintered bronze filter element, and while it is compact and lightweight, it is serviceable in compressed air systems for industrial, automotive and automation purposes. The muffler has 1/8 NPT male thread and is quick and easy to install into a variety of pneumatic arrangements. The Adsens 1/8 Sintered Bronze Muffler is made to withstand pressure; rated at 300 psi and 300°F, generally allowing for versatility and positive results!
Application: Designed to Diffuse Air & Muffler Noise to Acceptable level within OSHA useable sound levels
Used on Exhaust Ports, Valves, Cylinders & Air Tools
Construction: Porous Sintered Bronze 40 Micron Filter
Maximum Operating Pressure 300 PSI
Operating temperature 35F to 300F
- Product: Sintered Bronze Muffler - 1/8 thread
- Manufacturer: Adsens Technology
- Thread Type/Size: 1/8 NPT Male
- Material: Brass body with a sintered bronze filter element
- Filter Porosity: 10, 40, 90 micron
- Max Operating Pressure: 300 psi
- Temperature Range: 35°F - 300°F (1.6°C - 149°C)
- Length: 29/32
- Hex Size: 7/16
- Weight: Approx. 0.0163 lbs
- Fluids: Air, Oil, Water
- Country of Origin: Taiwan
- Expected Application: Pneumatic equipment noise reduction.
| Approx. Shipping Weight | 0.016300 |
| Country Of Manufacture | Taiwan |
| Construction Material | Brass |
| Applicable Fluid | Air, Oil, Water |
| Thread Size(S) | 1/8 |
| Thread Type | Npt |
| Length | 29/32 |
| Hex Size | 7/16 |
| Element | 10 Micron Filter, 40 Micron Filter, 90 Micron Filter |
| Element Material | Sintered Bronze |
| Max Pressure | 300 Psi |
| Temperature Range | 35-300°F (1.6-149°C) |
