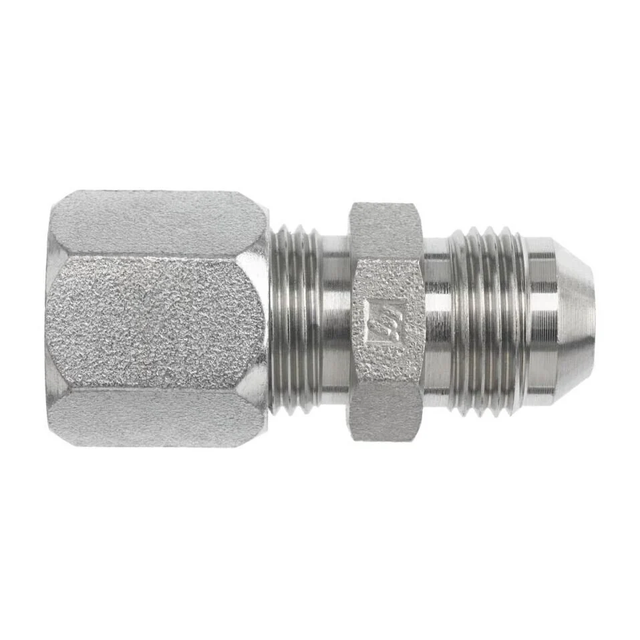

The C2402-08-08 is a precision-machined straight hydraulic fitting designed to connect a 1/2" tube to a 1/2" Male JIC (37° flare) port. Manufactured from high-strength steel, it ensures exceptional durability and leak-free performance in high-pressure systems. Its compact design and Cr3 plating provide excellent corrosion resistance, making it suitable for demanding industrial, mobile, and hydraulic applications. This fitting guarantees secure tube compression and reliable fluid transfer across various system pressures. Ideal for equipment maintenance, custom assemblies, and OEM hydraulic systems.
Fitting Chart- Connects 1/2" tube to 1/2" (3/4-16) Male JIC thread
- High-strength steel construction for durability
- Cr3 plating for enhanced corrosion protection
- Precision 37° flare design for leak-free sealing
- Compact straight body for easy installation
- Ideal for high-pressure hydraulic and industrial applications
| Thread B1 Type | Tube O.D. 1/2 |
| Thread B1 Size | 3/4-16 |
| Thread B1 Drill | 0.422 in |
| Thread B2 Type | Male JIC SAE 37° Flare |
| Thread B2 Size | 3/4-16 |
| Thread B2 Drill | 0.391 in |
| Thread Specification | SAE J514 |
| Body Hex | 0.812 in |
| C Hex | 0.305 in |
| Overall Length (L) | 1.5 in |
| Body Material | Steel Compression |
| Raw Material Type | Steel |
| Plating | Cr3 |
| Regulatory | California Prop-65 Warning |
