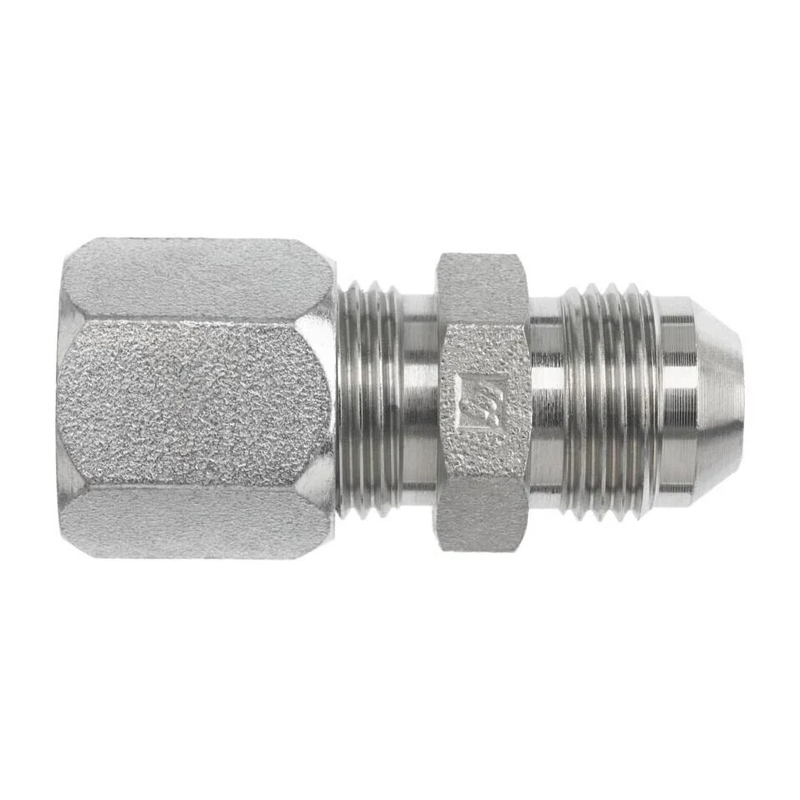

The Brennan C2402-16-16 is a straight high-pressure hydraulic fitting designed to connect 1" tube OD to a 1" Male JIC (1-5/16-12) connection. Built with a 37° SAE J514 flare, it ensures a secure, leak-resistant seal for demanding hydraulic systems. Constructed from durable steel compression material with Cr3 plating, it offers excellent corrosion resistance and long-lasting performance. With a compact design and easy installation, this fitting is ideal for industrial, mobile, and high-pressure hydraulic applications.
Fitting Chart- 1" tube OD x 1" MJIC (1-5/16-12) straight hydraulic adapter
- SAE J514-compliant 37° flare for leak-free performance
- Heavy-duty steel compression body for high-pressure use
- Cr3 plated for enhanced corrosion protection
- Compact design with 1.375" body hex and 2.04" overall length
- Suitable for industrial, mobile, and high-pressure hydraulic systems
| Specification | Details |
| Thread B1 Type | Tube Od 1 |
| Thread B1 Size | 1 5/16-12 |
| Thread B1 Drill Mm | 0.875 |
| Thread B2 Type | Male JIC SAE 37 Degree Flare |
| Thread B2 Size | 1-5/16-12 |
| Thread B2 Drill Mm | 0.844 |
| Thread B2 Specification | SAE J514 |
| Body Hex Mm | 1.375 |
| C Hex 1 Mm | 0.415 |
| Overall Length L Mm | 2.04 |
| Body Material | Steel Compression |
| Raw Material Type | Steel |
| Plating | Cr3 |
