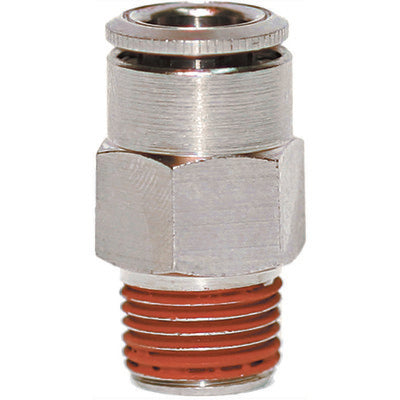

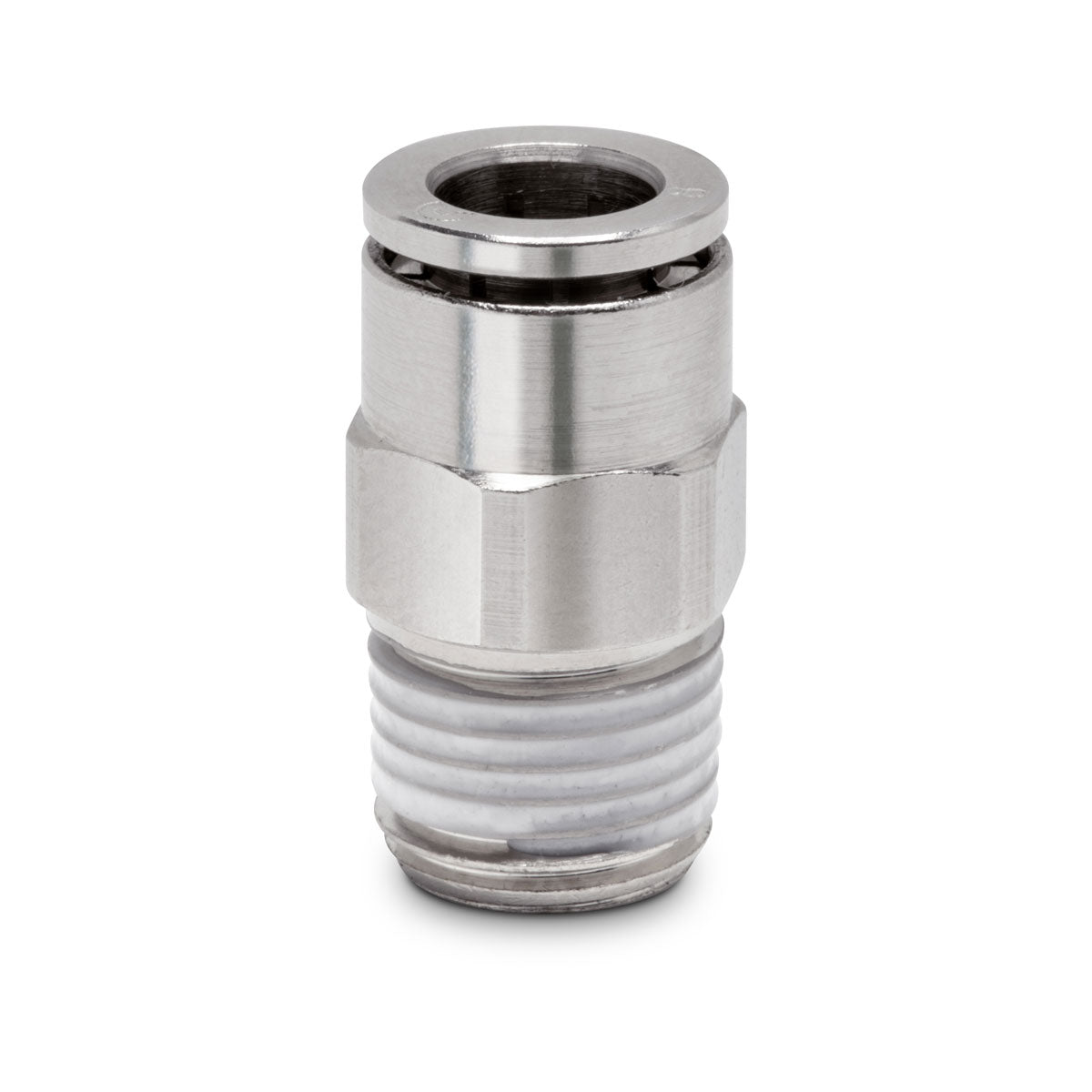

This heavy-duty straight male connector is built to establish a reliable, high-integrity connection between fixed female component ports and flexible pneumatic tubing. Machined from high-grade, corrosion-resistant metallic materials, it handles extreme thread torque and severe mechanical stress without structural distortion. The precision-cut male threads ensure perfect structural alignment and an absolute seal against fluid pressure loss.
The straight, full-bore internal configuration permits unrestricted volumetric flow rates, maximizing the speed and power delivery of downstream pneumatic actuators. Engineered for high-vibration applications, this robust fitting maintains its sealing performance under constant operational shifting. It is an essential component for heavy industrial machinery, assembly lines, and primary air supply distribution networks.
- Heavy-duty structural metal composition offers resistance to high torque loads and guards against impact damage.
- Straight full-bore internal channel allows completely unrestricted air velocity to optimize pneumatic cylinder response times across systems.
- High-grade thread integration prevents fugitive compressed air emissions, defending continuous operating pressures and reducing energy waste.
- Robust interface safely bridges main supply manifolds directly to flexible distribution lines across complex automated machinery layouts.
- Exterior hex geometry allows straightforward wrench tightening during final assembly, preventing thread stripping or configuration deformation.
- High-pressure balanced engineering guards against catastrophic fitting blowouts, preserving operator protection under intense system loading.
- Fatigue-resistant threads tolerate repeated component installation and removal cycles, yielding an extended operational service life.
| Part No | C6510-08-08 |
| Product Type | 1/2" TUBE X 1/2" MNPT COMPACT STRAIGHT |
| Supplier Name | Camozzi Automation, Inc. |
| Application | Heavy-duty primary fluid distribution and direct port connection on large pneumatic manifolds |
| Function | Straight rigid adaptation of a female 1/2-inch NPT port into a 1/2-inch push-in line |
| Compatibility | Calibrated fractional 1/2-inch outside diameter polymer tubing lines and matching female port frames |
| Installation Type | Threaded male NPT port shank with an opposite quick push-to-connect tool-less entry |
| Compatible Media | Industrial compressed air, vacuum networks, and non-hazardous technical system gases |
| Material | Premium machined nickel-plated brass construction with highly durable integrated synthetic gaskets |
| Operating Condition | High-throughput automated production lines requiring absolute continuous pressure containment under extreme vibration |
| Performance Feature | Concentric low-resistance full-bore flow path paired with an instantaneous zero-leak mechanical line lock |
