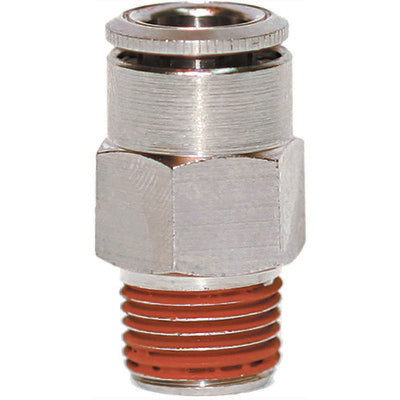

This specialized straight male connector is built to establish a secure, high-integrity straight transition between fixed female machine ports and flexible polymer micro-tubing. Machined with a robust metallic base and an integrated push-to-connect sleeve interface, it handles extreme thread torque and severe mechanical stress without structural distortion. The precision-cut male NPT threads ensure perfect structural alignment and an absolute seal against fluid pressure loss.
The straight, full-bore internal configuration permits unrestricted volumetric flow rates, maximizing the speed and power delivery of downstream pneumatic actuators. Engineered for high-vibration applications, this robust fitting maintains its sealing performance under constant operational shifting. It is an essential component for high-density control arrays, modular robotic terminals, and localized logic circuits.
- Heavy-duty structural metal composition offers superior resistance to mechanical wear and guards against impact damage.
- Straight full-bore internal channel allows completely unrestricted air velocity to optimize pneumatic cylinder response times across systems.
- High-grade thread integration prevents fugitive compressed air emissions, defending continuous operating pressures and reducing energy waste.
- Robust miniature interface safely bridges micro-bore logic circuits directly to flexible distribution lines across machinery.
- Exterior hex geometry allows straightforward wrench tightening during final assembly, preventing thread stripping or configuration deformation.
- High-pressure balanced engineering guards against catastrophic fitting blowouts, preserving operator protection under intense system loading.
- Fatigue-resistant threads tolerate repeated component installation and removal cycles, yielding an extended operational service life.

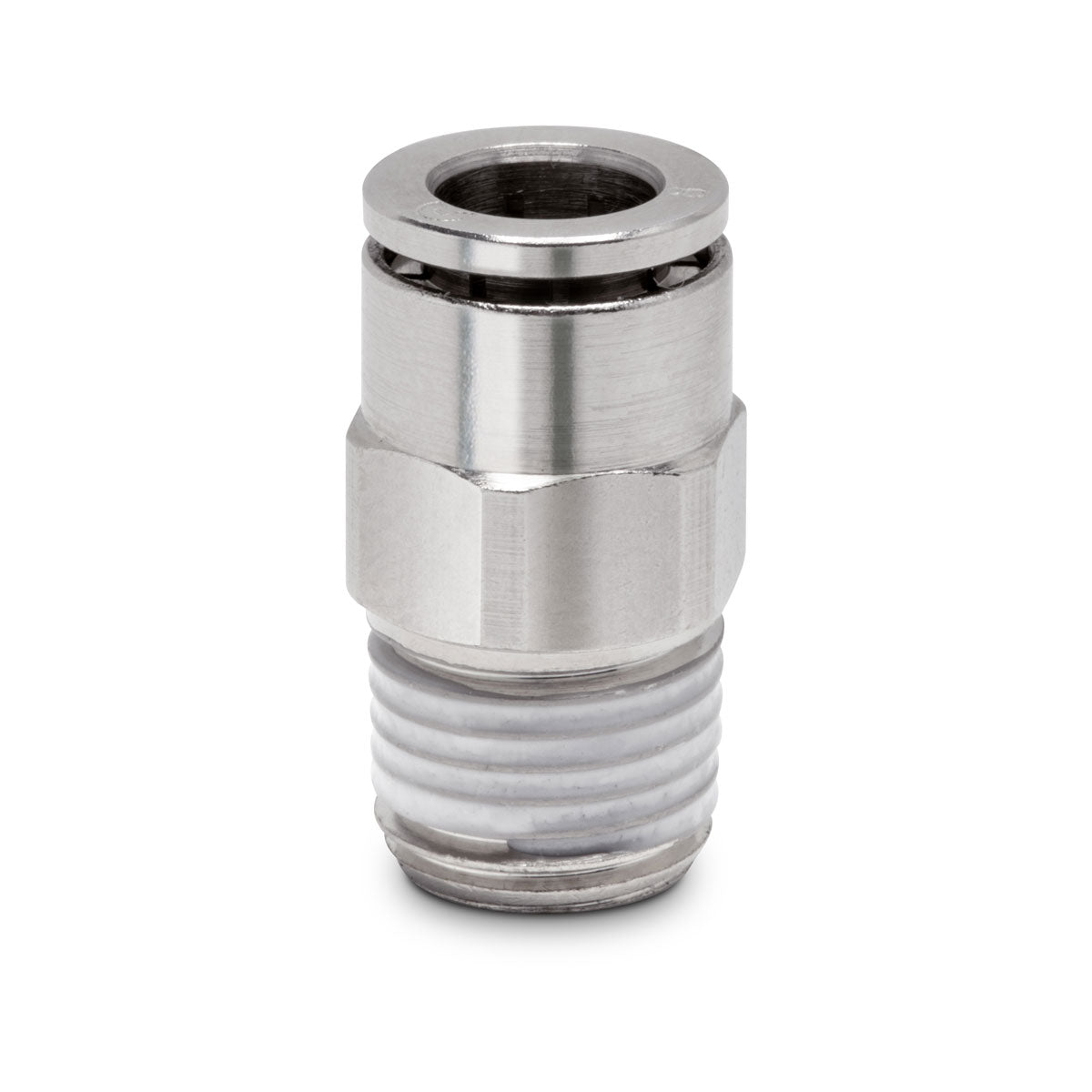

| Part No | C6510-53-02 |
| Product Type | 5/32" TUBE X 1/8" MNPT COMPACT STRAIGHT |
| Supplier Name | Camozzi Automation, Inc. |
| Application | Micro-pneumatic port adaptation and space-optimized circuit connections on manifold rails |
| Function | Straight linear coupling of a 1/8-inch female NPT port to a 5/32-inch flexible tube |
| Compatibility | Standard fractional 5/32-inch outside diameter flexible polymer lines and industrial female ports |
| Installation Type | Threaded male NPT base with an instantaneous push-in opposite port interface |
| Compatible Media | High-pressure compressed air, technical process gases, and low-pressure neutral fluids |
| Material | Premium nickel-plated brass body with an integrated wear-resistant high-grade synthetic seal |
| Operating Condition | High-frequency automated manufacturing lines with constrained panel space parameters and vibration stress |
| Performance Feature | Low-profile concentric flow path providing minimal resistance paired with quick tool-less assembly |
