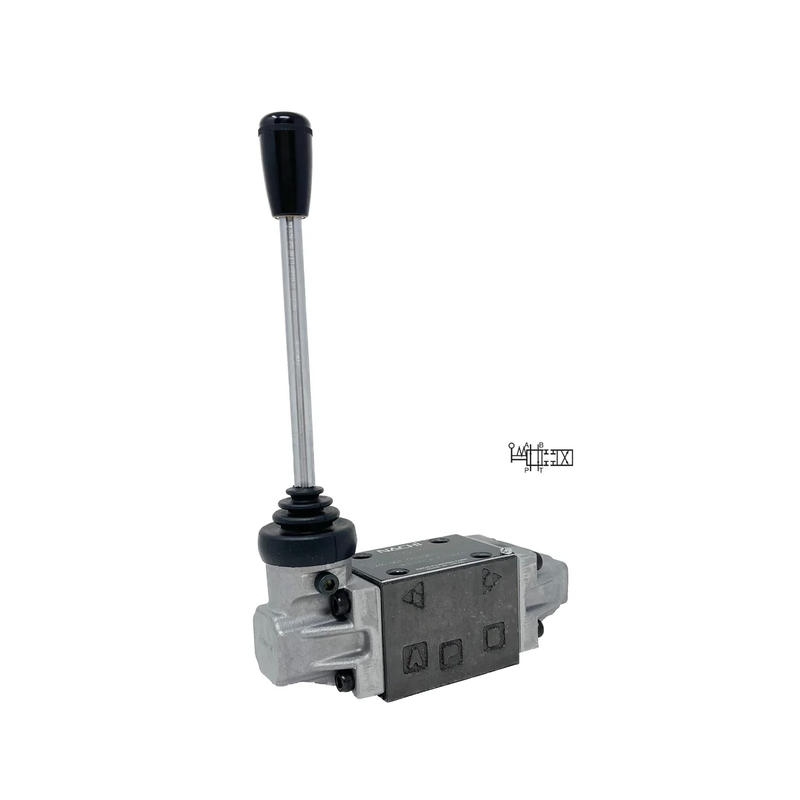

Designed for reliable directional control in hydraulic systems, this lever-operated 2-position, 4-way valve features a balanced spool design that eliminates the need for external drain piping. It supports operation with backpressures up to 2320 psi and is built to handle flow rates up to 10.5 GPM at pressures up to 5075 psi. With direct manifold mounting to a standard NG6 (D03) subplate, this valve is ideal for medium-duty applications requiring precise manual actuation and high durability.
- Balanced-type design No need for external drain piping; handles backpressures up to 2320 psi
- 2-position, 4-way spool Enables switching between two flow paths with no center position
- Manual lever actuation Offers on-demand, precise flow direction control
- Manifold mounting Direct NG6 (D03) subplate compatibility for easy installation
- High performance ratings Supports up to 10.5 GPM flow and 5075 psi pressure
- Robust construction Built for durability and performance in demanding hydraulic environments
Valve Type | Subplate/Manifold Mounted |
Mounting Interface | D03 (NG6) |
Flow Rating | 10.5 GPM |
Pressure Rating | 5075 psi |
Actuation Type | Lever Operated |
Spool Configuration | 2-Position, 4-Way |
Neutral Position | Not Applicable (No center position) |
Port Blocking | Depends on lever position |
Backpressure Capability | Up to 2320 psi without drain |
Country of Manufacture | Japan |
Height | 7.72 in |
Length | 2.72 in |
Width | 9.92 in |
Weight | 4.41 lbs |
