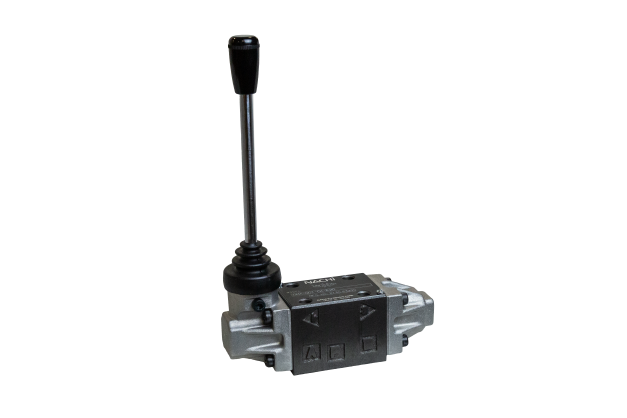

DMA-G01-C6-E20

The DMA Type Manual Valve features compact 01 and 03 sizes that are perfect for small flow rate control. Since a balanced type valve is used, there is no need for drain piping and use with back pressures up to 2320 psi is possible. Mounting methods are the same as SAG01/03, and the 01, 03 size modular valve can be used, so circuit configuration is quick and easy.This directional valve is commonly used in hydraulic machinery and systems that require precise control over fluid direction and flow, making it ideal for industrial equipment and automated processes.

• Compact design Available in 01 and 03 sizes, ideal for controlling small flow rates in tight spaces.
• No drain piping required Uses a balanced type valve, allowing operation with back pressure up to 2320 psi without additional piping.
• Modular compatibility Compatible with SAG01/03 mounting and modular valves, simplifying circuit configuration.
• Spring-centered operation Ensures reliable and automatic return to center position (Model Code "C").
• Easy installation 01 size requires no bolts, and 03 size uses standard 1/4-20 mounting bolts (Design Number E20).
