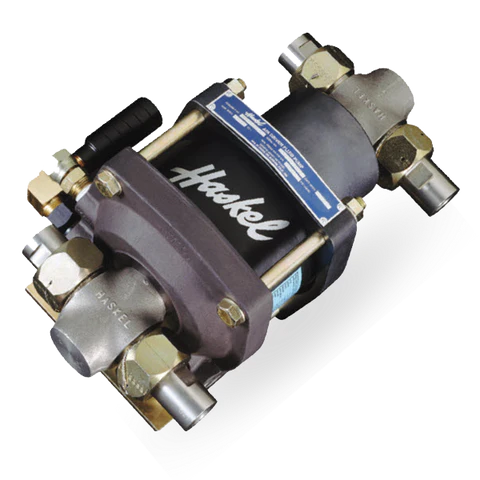

The Haskel DSHF-202 is a 2?HP double-acting pneumatic liquid pump featuring a 202:1 nominal pressure ratio (actual ~230:1). It generates hydraulic pressures up to 30,000?psi using only compressed air ideal for hazardous or spark-sensitive environments. With a 2" stroke and distance-piece design, it offers stall-and-hold capability to maintain pressure without consuming air. Constructed from stainless steel with UHMWPE dynamic seals, this pump ensures durability and reliability. Compact yet rugged, its perfect for hydrostatic testing, fluid transfer, calibration, clamping, and bolting applications.
- Double-acting 2?HP pneumatic pump ideal for consistent high-pressure flow
- Capable of delivering up to 30,000?psi continuous output
- Stall-and-hold design retains pressure without air waste
- Robust stainless-steel body and UHMWPE seals ensure corrosion resistance
- Compact 2" stroke pump with distance piece minimizes contamination risk
| Model / Part No. | DSHF-202 |
| Power Rating | 2 HP pneumatic (double-acting) |
| Nominal / Actual Pressure Ratio | 202:1 nominal / ~230:1 actual |
| Max Hydraulic Pressure | 30,000 psi (2,069 bar) continuous |
| Stroke Length | 2 inches |
| Pump Type | Double-acting with distance piece |
| Materials | Body & Piston: Stainless steel; Seal Material: UHMWPE dynamic seals |
| Weight | 35 lb |
