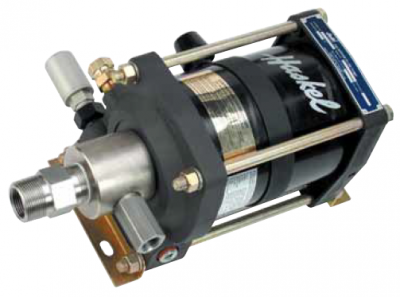

The Haskel DSTV-122 is a powerful 2?HP single-air-head pneumatic pump that delivers hydraulic pressures up to 15,000?psi using clean compressed air ideal for spark-sensitive environments. With a nominal 122:1 ratio (actual ~130:1), this pump provides reliable, controlled fluid delivery for hydrostatic testing, calibration, clamping, and bolting. Its distance-piece design includes a stall-and-hold feature, allowing the pump to maintain pressure without continuous airflow. Constructed from stainless steel with UHMWPE dynamic seals, the DSTV-122 is durable and compact, making it well-suited for industrial and field applications.
- Delivers up to 15,000?psi of hydraulic pressure
- Pneumatic, no electricity or sparks ideal for hazardous zones
- Stall-and-hold distance-piece design locks in pressure without air use
- Stainless steel construction with UHMWPE seals ensures corrosion resistance and durability
- Compact 2?HP, single air head unit delivers consistent performance
| Model / Part No. | DSTV-122 |
| Drive Power | 2?HP pneumatic (single air head) |
| Pump Type | Single-air-head with stall-and-hold distance-piece |
| Pressure Ratio | Nominal: 122:1; Actual: ?130:1 |
| Max Hydraulic Pressure | 15,000?psi (1,034?bar) continuous |
| Max Flow Rate | ~5?GPM (?15?L/min) |
| Air Drive Pressure | 3 100?psi |
| Materials | Body & Piston: Stainless steel; Seals: UHMWPE dynamic |
| Estimated Weight | ?30?lb (13.6?kg) |
