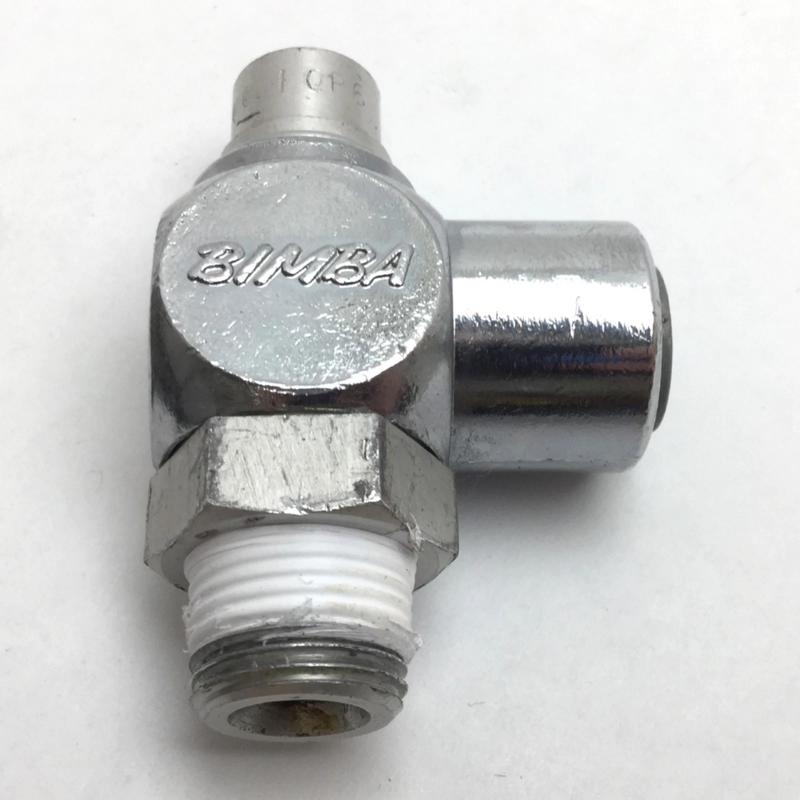

The Bimba FCP6 flow control valve by Bimba Manufacturing Co. is a 3/8" NPT male-to-female, meter-out flow control designed for industrial pneumatic systems. Housed in a chrome-plated zinc die-cast body, it provides excellent corrosion resistance and durability. Precision flow control is achieved via a recessed, screwdriver-adjustable needle. With a free-flow Cv of 0.91 and a controlled-flow Cv of 0.73, it is ideal for regulating the speed of pneumatic cylinders and actuators.
- 3/8" NPT Male-to-Female Ports: Common industrial size, easy to integrate into existing air line systems.
- Meter-Out Flow Control: Delivers controlled flow when exhausting air and unrestricted flow when pressurizing, offering smooth braking or retraction control.
- Recessed Screwdriver Adjustment: Offers precise flow tuning while protecting the adjuster from accidental changes.
- Durable Construction: Chrome-plated, zinc die-cast body resists wear and corrosion?ideal for industrial environments.
- High Flow Capacity: Cv ?0.91 (free flow) and 0.73 (controlled), suitable for cylinders and moderate flow rates.
Specification | Details |
Port Size | 3/8" NPT Male → 3/8" NPT Female |
Flow Style | Meter-Out (One-Way Control of Exhaust Air) |
Adjustment Type | Recessed Screwdriver Slot |
Free-Flow Cv | 0.91 |
Controlled-Flow Cv | 0.73 |
Construction Material | Chrome-Plated Zinc Die-Cast with Metal Needle |
Operating Pressure | Suitable for Standard Pneumatic Pressures |
Operating Temperature | Typically 0°C to approx. 70°C |
Weight | ~0.25 lb (~0.11 kg) |
