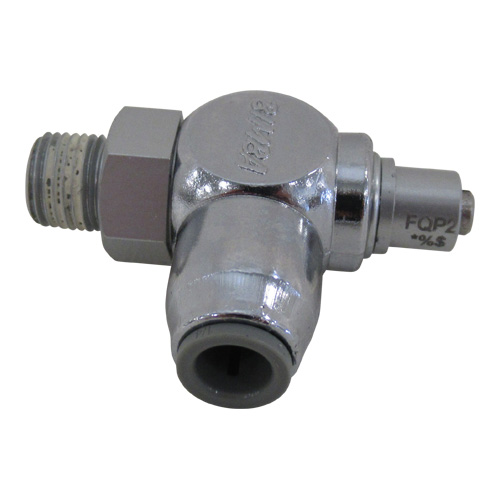

The Bimba FQP2 is a compact Quik-Flo flow control valve designed for meter-out control in pneumatic cylinders. It features a 1/8" NPT inlet and 1/4" push-to-connect tube outlet, with a recessed screwdriver adjustment for fine-tuning. Constructed from durable metal, it offers precise speed control in industrial automation applications. Its design ensures free flow in one direction and controlled flow in the other, making it ideal for managing exhaust flow in compact cylinder setups.
- Provides meter-out flow control for precise cylinder speed regulation
- Equipped with 1/8" NPT inlet and 1/4" push-to-connect tube outlet
- Features recessed screwdriver adjustment for accurate tuning
- Durable metal body withstands industrial use
- Compact, right-angle form factor for tight installation spaces
| Part Number | FQP2 |
| Flow Type | Meter-out control |
| Inlet Port | 1/8" NPT male |
| Outlet Port | 1/4" push-to-connect tubing |
| Adjustment | Recessed screw slot |
| Material | Metal body |
| Operating Pressure | Up to 150?psi (pneumatic air only) |
| Temperature Range | 14 F to +167 F (?10? C to +75? C) |
