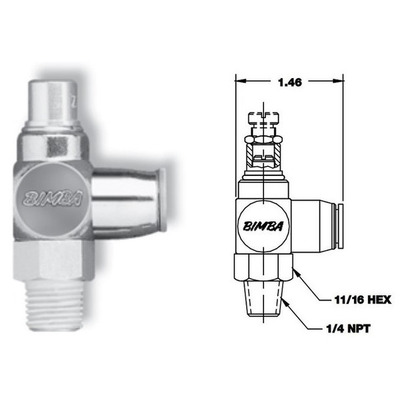

The Bimba FQP4 is a compact right-angle meter-out flow control valve engineered for pneumatic applications. It features a 1/4" NPT inlet and 3/8" push-to-connect outlet with a recessed screwdriver adjustment for fine flow control. Made from chrome-plated zinc die-cast, it provides free flow in one direction and precise restriction in the opposite, ensuring smooth actuation of cylinders. Ideal for industrial automation, its robust construction and needle-valve accuracy enable reliable performance in tight installation spaces. Rated for up to 150 psi, it balances durability and precision in demanding environments.
- 1/4" NPT 3/8" push-to-connect tubing configuration
- Meter-out valve with recessed screw adjustment
- Chrome-plated zinc die-cast body for strength and corrosion resistance
- Free flow one way, controlled flow the other for precise cylinder speed control
- Rated up to 150 psi, perfect for pneumatic automation systems
| Part Number | FQP4 |
| Function | Meter-out flow control valve |
| Inlet Port | 1/4" NPT male |
| Outlet Port | 3/8" OD push-to-connect tubing |
| Adjustment | Recessed needle slot |
| Body Material | Chrome-plated zinc die cast |
| Max Pressure | 150 psi (air) |
| Flow Coefficient (Cv) | ~0.44 controlled, ~0.50 free flow |
