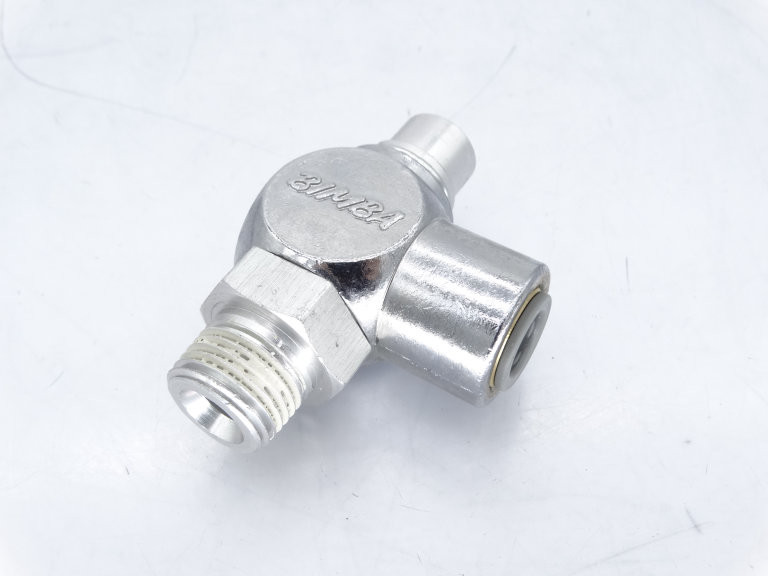

The Bimba FQP6 Quik-Flo is a compact flow control valve designed to meter exhaust flow (meter-out) from pneumatic cylinders. It features a 3/8" NPT inlet and 3/8" push-to-connect tube outlet, with a recessed screw adjustment for fine flow control. Chrome-plated zinc alloy construction ensures corrosion resistance and durability. The valve delivers controlled flow in one direction while allowing free flow in the opposite direction, offering a balanced Cv of ~0.73 (controlled) and ~0.91 (free). Ideal for precision speed control in industrial automation and tooling systems.
- Provides precise meter-out flow control for pneumatic cylinders
- Features 3/8" NPT inlet and 3/8" push-to-connect tube outlet
- Compact design with recessed screw adjustment for easy tuning
- Made from chrome-plated zinc alloy for durability and corrosion resistance
- Allows free flow in one direction and controlled flow in the other
- Ideal for industrial automation and motion control systems
| Part Number | FQP6 |
| Type | Quik-Flo flow control valve (meter-out) |
| Inlet Port | 3/8" NPT male |
| Outlet Port | 3/8" push-to-connect tubing |
| Body Material | Chrome-plated zinc alloy |
| Adjustment | Recessed screw slot for flow tuning |
| Flow Capacity (Cv) | ~0.73 metered, ~0.91 free flow |
| Application | Pneumatic cylinder speed control |
