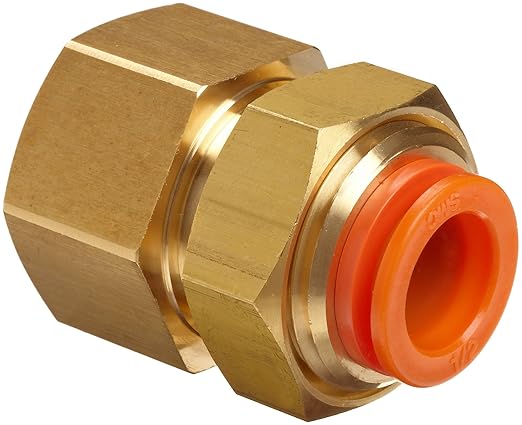

This one-touch bulkhead connector allows a secure transition from " OD tubing into a " NPT port through panels or panels. Constructed from nickel-plated brass with a release collar and rotatable stud, it ensures easy alignment and safe tube removal. Rated for vacuum up to 1?MPa (145?psi), it's suitable for tight industrial enclosures or pneumatic cabinets. Compact and durable, it's perfect for reliable air-line installations.
- One-touch push-in for " OD tube to " NPT bulkhead port
- Rotating stud simplifies installation in confined spaces
- Release collar protects tubing during disconnection
- Service range: vacuum to 1?MPa (145?psi) with ~3?MPa burst capacity
- Brass nickel-plated body and resin collar; RoHS compliant
| Tube Size | " (12 mm) OD |
| Thread | " NPT male bulkhead |
| Maximum Pressure | Vacuum to 1 MPa (145 psi); burst ~3 MPa |
| Temperature Range | 5 C to 60 C (air); 040 C (water) |
| Materials | Nickel-plated brass body, PBT resin collar |
| Dimensions (LWH) | ~36 mm 24 mm 14 mm |
