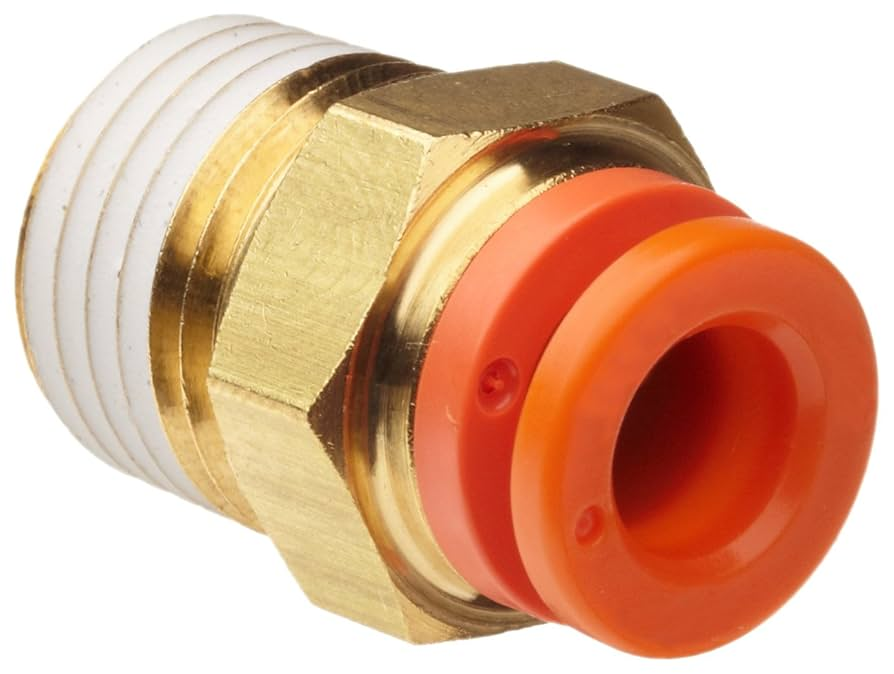

This one-touch male connector with a built-in NBR gasket provides a secure, leak-free connection without the need for thread sealant or tape. Designed for quick installation and easy tube release, it is ideal for pneumatic systems using nylon, polyurethane, or polyethylene tubing. The swivel design allows for flexible positioning in tight spaces, while its durable PBT and nickel-plated brass construction ensures long-lasting performance under pressures up to 1.0 MPa. Suitable for use in industrial automation, robotics, and air flow control systems.
- Built-in gasket seal no thread sealant or tape required
- One-touch push-in fitting allows easy tube connection and release
- Nickel-plated brass and resin construction for high durability and corrosion resistance
- Swivel design allows easy installation in tight spaces
- Compatible with nylon, polyurethane, and polyethylene tubes
- Handles wide range of pressures up to 1.0 MPa
- Suitable for industrial automation, air control, and packaging systems
- Available in metric and inch sizes, fitting multiple port and tube diameters
| Product Type | Male Connector with Gasket Seal |
| Series | KQ2H |
| Connection Type | One-Touch Push-In |
| Thread Type | NPT / Metric (Varies by Model) |
| Applicable Tube O.D. | 2 to 16 mm / 1/8" to 1/2" |
| Applicable Port Sizes | M3, M5, M6, 1/8", 1/4", 3/8", 1/2", 10-32 UNF |
| Seal Type | Built-in NBR Gasket |
| Body Material | PBT Resin + Nickel-Plated Brass |
| Operating Pressure Range | Up to 1.0 MPa (145 psi) |
| Operating Temperature Range | -5C to 60C (23F to 140F) |
| Media Compatibility | Air (Dry or Lubricated), Inert Gas |
| Application | Pneumatic Systems, Valves, Manifolds, Cylinders |
