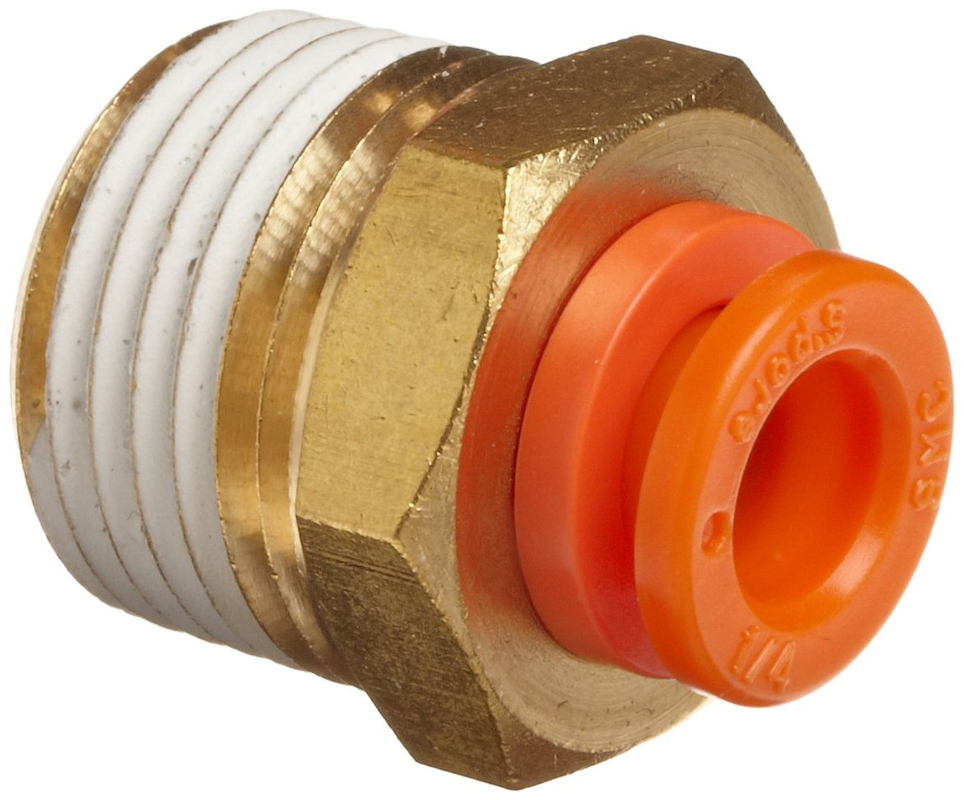

The SMC KQ2H07-36AS is a one-touch male connector fitting from the renowned KQ2H Series, designed for efficient, leak-resistant pneumatic and fluid system connections. This compact and lightweight fitting connects 1/4 outer diameter tubing to 3/8 NPT female threads, ideal for applications requiring straight inline connections.
Equipped with a pre-applied sealing agent, it eliminates the need for additional tape or paste, ensuring reliable sealing and reducing installation time. The perfect-circle release button allows for effortless tube removal without damaging the tube, streamlining maintenance and adjustments.
- One-touch push-to-connect design for fast, tool-free installation
- With sealant for leak-proof threaded connections
- Compact and lightweight body for easy integration
- Perfect circle release button for smooth disconnection
- Accepts polyurethane, nylon, and polyethylene tubing
- Suitable for air and water (non-potable) media
- Can operate under vacuum pressure and up to 1 MPa
- Durable construction with PBT, brass, stainless steel, and NBR components
- Straight design for inline connections from female-threaded ports
| Series | KQ2H Series |
| Product Type | Male Connector, One-Touch Fitting |
| Tube Size (Outer Diameter) | 1/4 in. (6.35 mm) |
| Thread Type | NPT (ANSI/ASME B1.20.1) |
| Thread Size | 3/8 in. NPT |
| Body Material | PBT + Brass (C3604) |
| Thread Material | Brass (C3604) |
| Seal / O-Ring Material | NBR (Nitrile Rubber) |
| Chuck / Guide Material | SUS304 (Stainless Steel) |
| Gasket Material | SUS304 + NBR |
| Release Button Material | POM |
| Release Button Shape | Perfect Circle |
| Release Button Color | Orange |
| Color | White |
| Connection Style | Straight, One-Touch + Threaded |
| Number of Connections | 1 |
| Operating Pressure | -100 kPa to 1 MPa |
| Proof Pressure | 3 MPa |
| Operating Temperature Range | -5C to 60C (Water: 0C to 40C, No Freezing) |
| Media Compatibility | Air, Water (Non-Potable) |
| Applications | Pneumatics, Automation, Industrial Systems |
