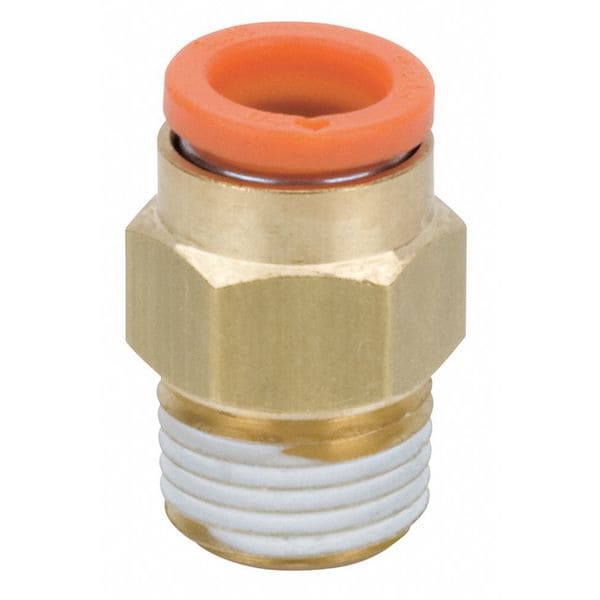

This compact push-to-connect male adapter is designed to connect 1/2" OD tubing to a 1/4" male BSPT threaded port. Built with a durable PBT resin body and nickel-plated brass threads, it ensures corrosion resistance and reliable sealing. Ideal for compressed air and inert gas systems, it operates up to 145 PSI and between -5C to 60C. The one-touch fitting allows for quick installation and removal, making it suitable for tight spaces in industrial pneumatic applications.
- Quick one-touch design Push-to-connect fitting for fast and tool-free tube insertion and release
- 1/2 Tube x 3/8 NPT Male Compatible with standard pneumatic tubing and American thread systems
- Durable construction Body made from PBT plastic; threaded stud is brass with stainless steel components for corrosion resistance
- Pre-applied thread sealant Ensures leak-free connections and reduces installation time
- High operating pressure Withstands up to 145 PSI (1 MPa), ideal for industrial compressed air systems
- Wide temperature range Operates between +23F to +140F (-5C to +60C)
- ROHS compliant Environmentally safe and meets international safety standards
- Compact & lightweight Straight adapter with only 28.7 mm overall length for tight spaces
| Product Type | Male Adapter (Push-To-Connect) |
| Tube Size | 1/2" OD |
| Thread Type | Male BSPT |
| Thread Size | 1/4" |
| Body Material | PBT Resin |
| Thread Material | Nickel-Plated Brass |
| Connection Type | Tube Male BSPT |
| Release Type | Push Button |
| Hex Size | 19 mm |
| Operating Pressure | Up to 145 PSI (1.0 MPa) |
| Temperature Range | -5C to 60C (23F to 140F) |
| Media Compatibility | Air, Inert Gas, Non-Rising Water |
| Overall Length | 28.7 mm |
| RoHS Compliant | Yes |
| Application | Pneumatic Systems, Industrial Automation |
