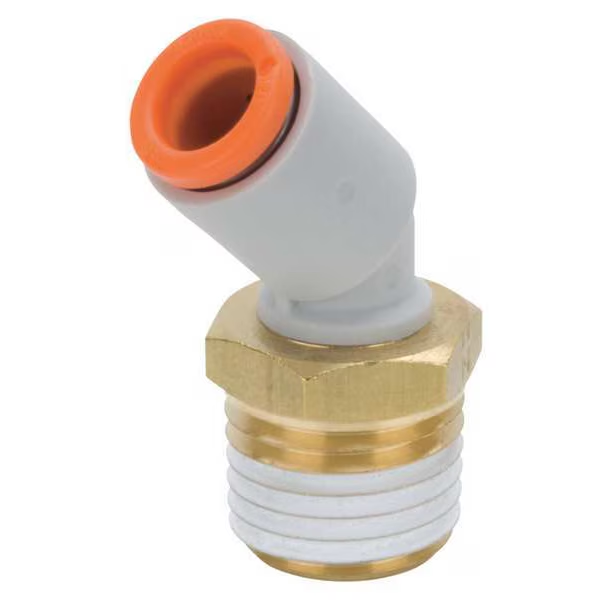

This 45 push-to-connect elbow fitting connects a 1/2" tube to a 3/8" male NPT thread, allowing for directional tube routing in tight spaces. Designed for use in pneumatic systems, it features a PBT resin body and nickel-plated brass threads for corrosion resistance. The built-in sealant ensures a leak-free connection, while the one-touch mechanism allows for easy tube insertion and release. Suitable for air and non-potable water applications, it operates up to 145 PSI and within a temperature range of -5C to 60C.
- 45 elbow design Ideal for directional tube routing in confined areas
- Push-to-connect x male NPT Quick tube connection with pre-sealed thread
- Durable build PBT body and brass threads resist corrosion and wear
- Operating pressure Up to 145 PSI (1.0 MPa)
- Temperature range -5C to 60C (23F to 140F)
- ROHS & ANSI compliant Meets industry safety and quality standards
| Fitting Type | 45 Male Elbow Adapter |
| Connection Type | Push-To-Connect Male NPT |
| Tube Size | 1/2" |
| Thread Size | 3/8" Male NPT |
| Body Material | PBT Resin |
| Thread Material | Nickel-Plated Brass |
| Max Operating Pressure | 145 PSI (1.0 MPa) |
| Operating Temperature Range | -5C to 60C (23F to 140F) |
| Media Compatibility | Air, Non-Potable Water |
| Sealant | Pre-Applied Thread Sealant |
| Tube Compatibility | Nylon, Soft Nylon, Polyurethane, FEP, PFA |
| Color | White/Gray |
| Release Type | Push Button |
| Compliances | RoHS, ANSI/ASME B1.20.1 |
| Measurement System | Imperial |
