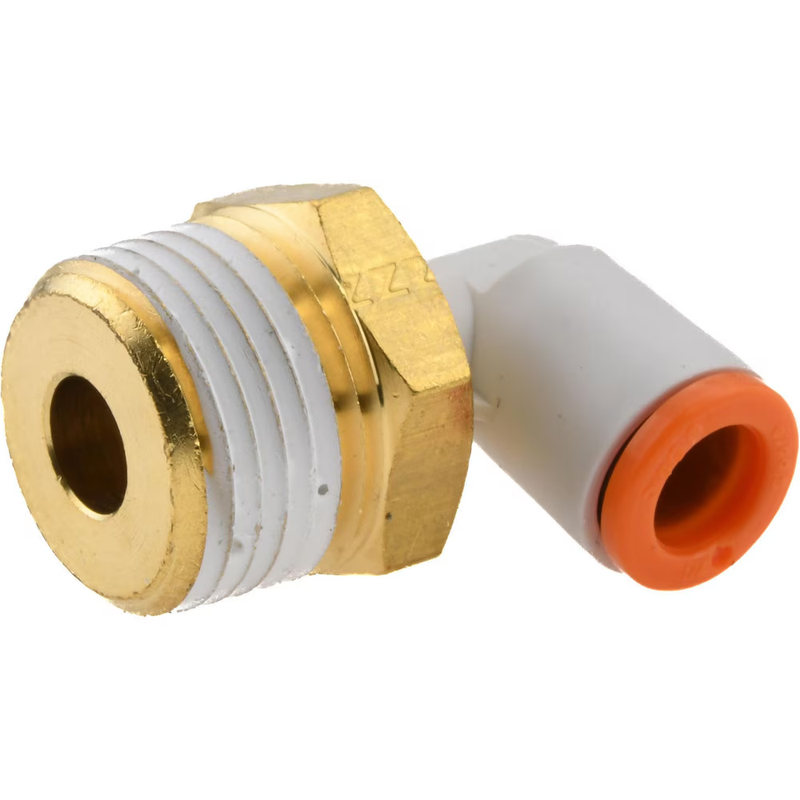

The SMC KQ2L07-36AS is a compact, high-performance male elbow one-touch fitting, designed for reliable and efficient pneumatic and fluid connections. Engineered to connect 1/4 tubing with 3/8 NPT threaded ports, this fitting is part of SMC's trusted KQ2 Series, known for its ease of use, leak-free performance, and versatile compatibility.
Constructed from PBT resin and electroless nickel-plated brass, the fitting offers excellent corrosion resistance and durability, making it ideal for harsh industrial environments. The 90 elbow design supports tight-space installation, while the one-touch push-to-connect feature allows for effortless tube insertion and removal without damaging the tube.
- One-touch connection for quick, tool-free tubing installation
- 90 elbow design ideal for right-angle piping from female threads
- Lightweight and compact for space-saving installations
- Built-in sealant on threads for leak-free connections
- Accepts nylon and polyurethane tubing
- Compatible with air and water media
- Corrosion-resistant body made from PBT + nickel-plated brass
- Handles vacuum pressures down to -100 kPa
- Release collar minimizes disconnection force and tube damage
- Not intended for use in potable water systems
| Series | KQ2 Series |
| Manufacturer | SMC Corporation |
| Tube Size | 1/4 in. (6.35 mm) |
| Port Size (Threaded End) | 3/8 in. NPT AWG |
| Thread Type | NPT (National Pipe Thread) |
| Thread Material | Brass (Electroless Nickel Plated) |
| Body Material | PBT Resin + Brass |
| Seal/O-Ring Material | NBR (Buna-N) |
| Gender | Male |
| Color | Orange, White |
| Connection Style | One-Touch + Threaded |
| Fitting Type | Male Elbow |
| Minimum Temperature | -5C |
| Maximum Temperature | 60C |
| Operating Pressure | Up to 1 MPa (145 PSI) |
| Proof Pressure | 3 MPa |
| Compatible Media | Air, Water |
| Applications | Pneumatics, Air Lines, Automation, Industrial Systems |
