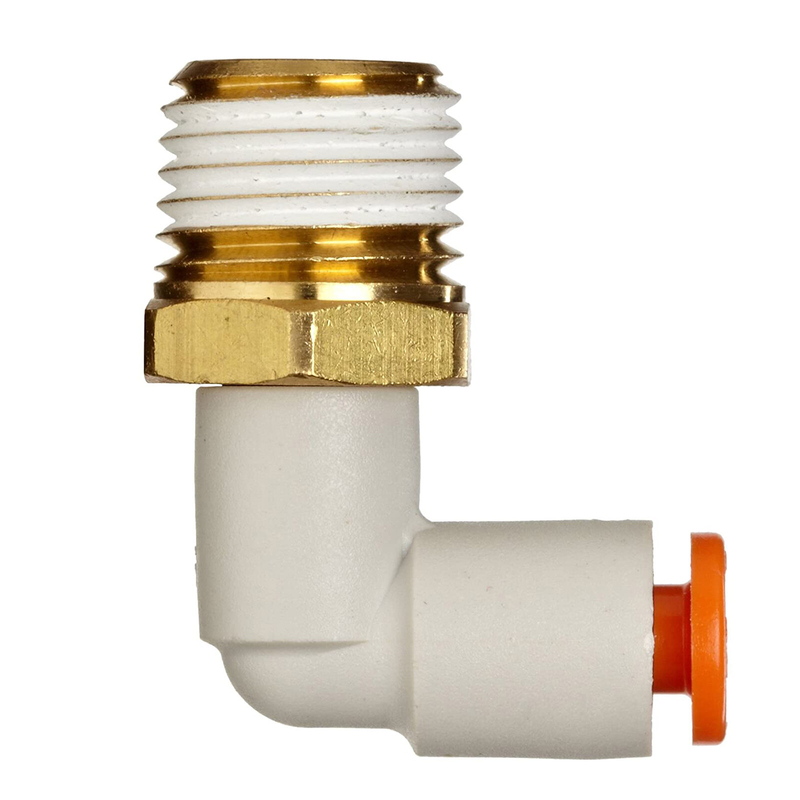

The SMC KQ2L11-35AS is a compact, lightweight elbow push-to-connect fitting designed for high-performance pneumatic and fluid systems. Featuring a 1/4 NPT male thread and 3/8 tube size, this fitting offers quick and secure connections with minimal effort using One Touch technology.
Constructed from brass and durable plastic with RoHS-compliant materials, it includes a pre-applied thread sealant for leak-proof performance. Its special profile seal accommodates a wide range of pressures from low vacuum up to 1.0 MPa, making it ideal for industrial automation, compressed air systems, and water (non-potable) applications.
- One-Touch Connection Style Enables fast and easy tube insertion and removal without tools.
- Rotatable Stud Allows the body to rotate during installation, ideal for tight or angled installations.
- Wide Pressure Range Suitable for vacuum to 1 MPa, with a proof pressure of up to 3 MPa.
- Reliable Seal Includes thread sealant and a special profile seal for enhanced leak resistance.
- Material Compatibility Accepts both nylon and polyurethane tubing.
- Certified & Compliant Built to ANSI/ASME B1.20.1 - 1983 thread standards; RoHS compliant.
| Manufacturer | SMC Corporation |
| Type | Elbow |
| Body Material | Brass, Plastic |
| Color | Orange, White |
| Tube Size | 3/8 in. |
| Thread Size | 1/4 NPT AWG |
| Thread Type | NPT |
| Port Size | 0.25 in. |
| Connection Style | One Touch |
| Gender | Male |
| Operating Pressure | 1 MPa (145 psi) |
| Proof Pressure | 3 MPa |
| Operating Fluid | Air, Water (Non-Potable) |
| Ambient Temperature Range | -5C to 60C (23F to 140F) |
| Standards | ANSI/ASME B1.20.1 - 1983, RoHS Compliant |
| Special Features | Pre-Applied Thread Sealant |
