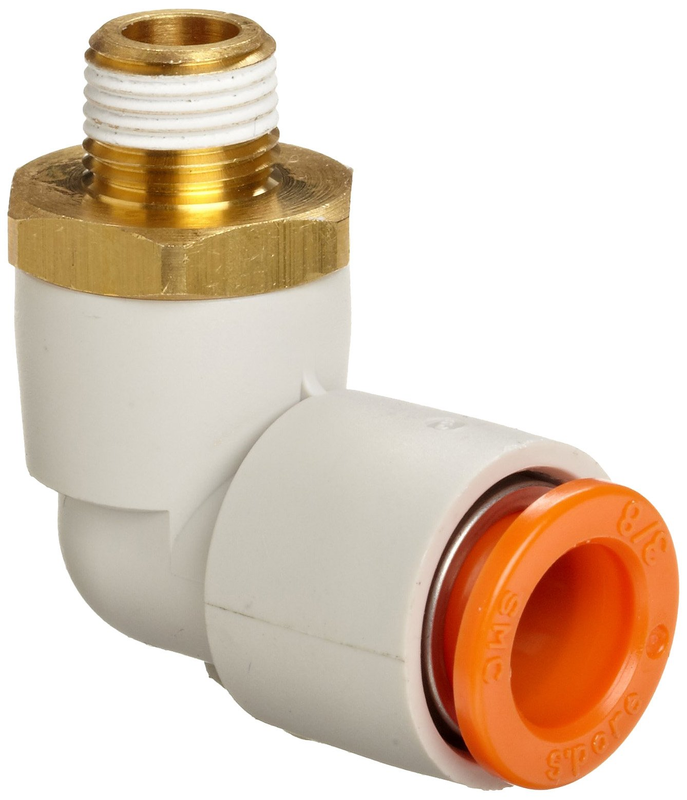

The SMC KQ2L11-36AS is a compact and durable male elbow one-touch fitting designed for fast and secure connections in pneumatic systems. Part of the KQ2 Series, this elbow fitting is engineered for 3/8 tubing and 3/8 NPT threaded ports, offering excellent performance in air and water applications.
Manufactured from PBT resin and electroless nickel-plated brass, it provides superior corrosion resistance, longevity, and strength. Its one-touch connection mechanism ensures easy installation and removal of tubing, while the elbow design facilitates right-angle piping in tight spaces.
Ideal for a wide range of industrial environments, this fitting handles pressures up to 1 MPa and temperatures from -5C to 60C, making it suitable for use in automation systems, fluid controls, and compressed air lines.
- One-touch fitting for quick tube insertion and removal
- Elbow shape for right-angle piping applications
- Compatible with nylon and polyurethane tubing
- Built with PBT + nickel-plated brass for enhanced durability
- Electroless nickel plating provides corrosion resistance
- Operates in vacuum pressures as low as -100 kPa
- No additional tools required for assembly
- Ideal for air and water media
- Compact, lightweight body design
| Product Type | One-Touch Fitting (Male Elbow) |
| Manufacturer | SMC Corporation |
| Series | KQ2 |
| Body Material | PBT + Brass (Electroless Nickel-Plated) |
| Seal/O-Ring Material | NBR (Buna-N) |
| Thread Size | 3/8 NPT AWG |
| Port Size | 0.375 in (3/8) |
| Tube Size | 3/8 in |
| Thread Type | NPT |
| Connection Style | One-Touch + Threaded |
| Gender | Male |
| Type of Connection | Male Elbow |
| Color | Orange / White |
| Operating Pressure | 1 MPa (145 PSI) |
| Proof Pressure | 3 MPa |
| Operating Temperature | -5C to 60C (23F to 140F) |
| Compatible Media | Air, Water |
| Minimum Ambient Temp | -5C |
| Maximum Ambient Temp | 60C |
| Applications | Industrial Automation, Air Line Systems, Fluid Control |
